Alarm Module, (Vehicle Antitheft)

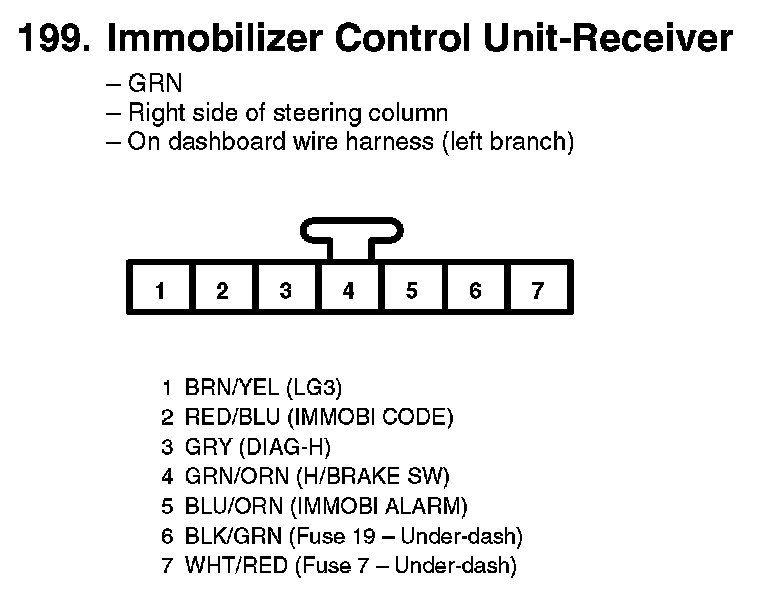

199. Immobilizer Control Unit-Receiver:

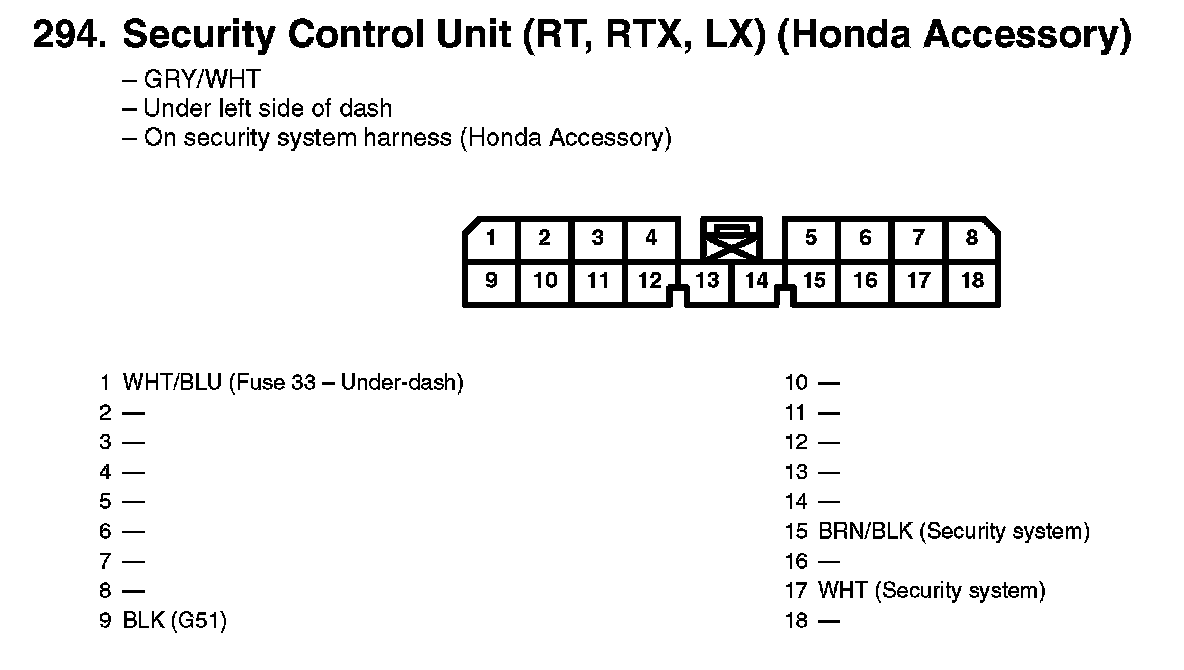

294. Security Control Unit (RT, RTX, LX) (Honda Accessory):

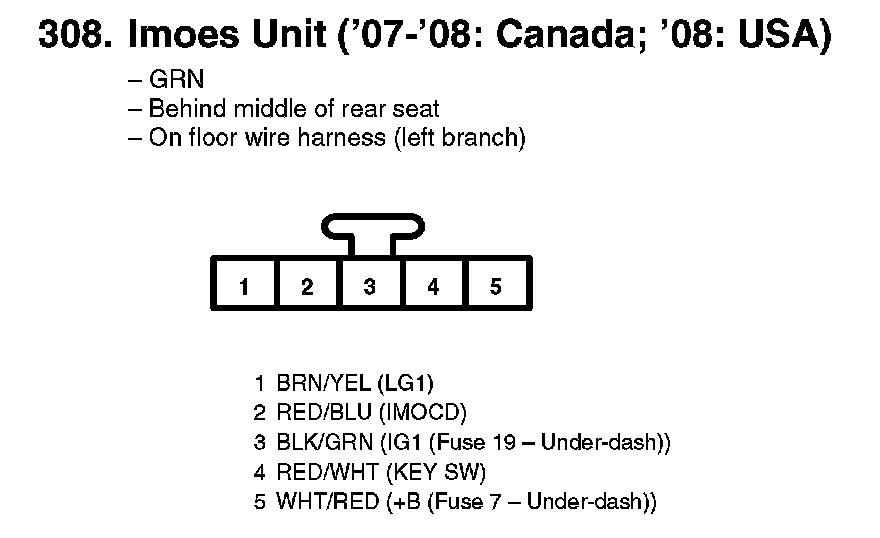

308. Imoes Unit ('07-'08: Canada; '08: USA):
