HVAC Control Unit Removal/Installation

HVAC Control Unit Removal/Installation

1. Remove the instrument panel.

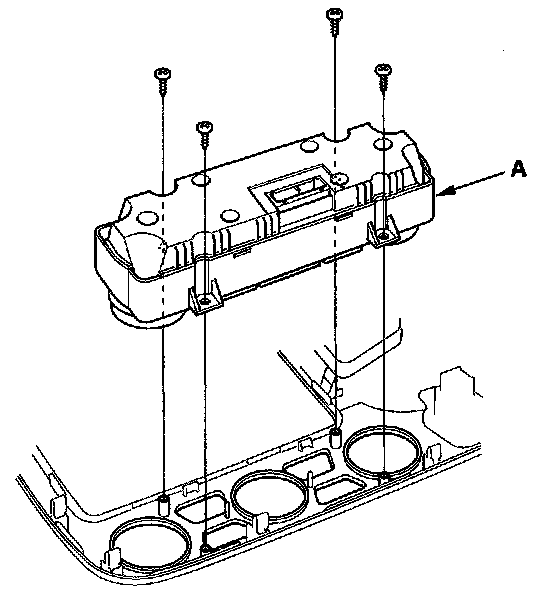

2. Remove the self-tapping screws, and the HVAC control unit (A).






3. Install the control unit in the reverse order of removal. After installation, operate the various functions to make sure they work properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
