Rocker Arm Oil Control Valve (VTEC Solenoid Valve) Removal/ Installation

  1. Disconnect the rocker arm oil control valve (VTEC solenoid valve) 1P connector and rocker arm oil pressure switch (VTEC oil pressure switch) 2P connector.
  2. Remove the bolts (A).

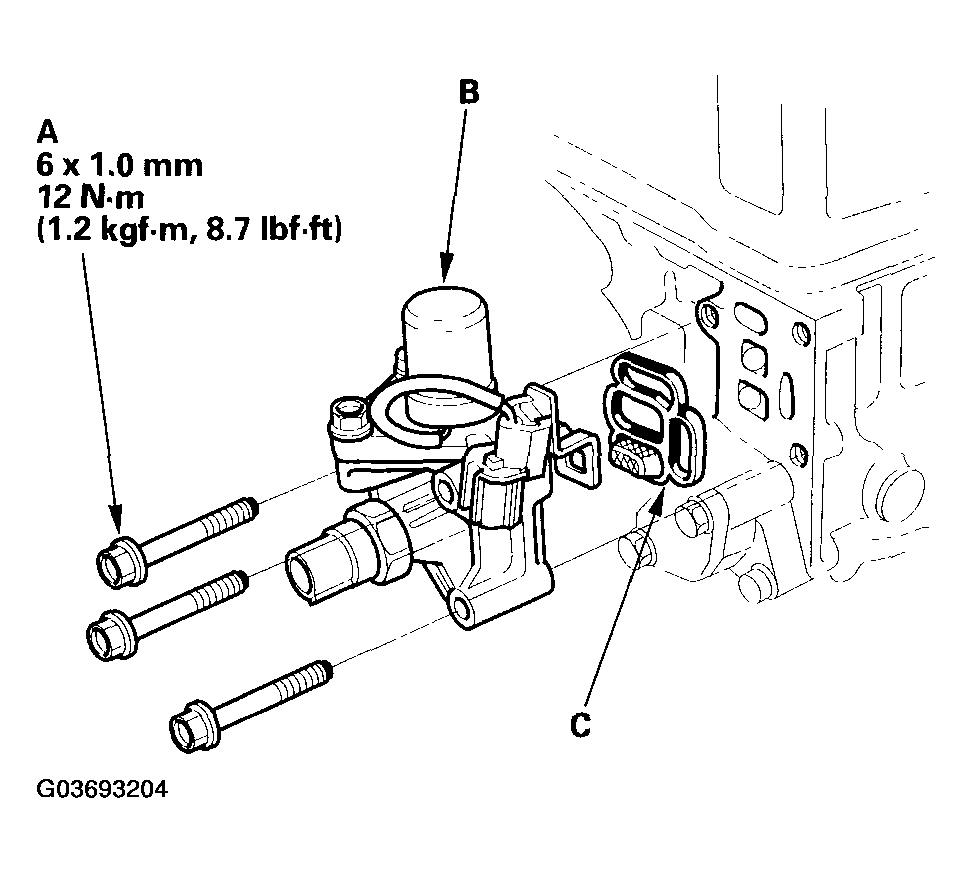

    Fig 1: Removing Bolts And Rocker Arm Oil Control Valve With Torque Specifications
    G03693204Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the rocker arm oil control valve (VTEC solenoid valve) (B).
  4. Install the rocker arm oil control valve (VTEC solenoid valve) in the reverse order of removal with a new filter (C).
