IG2 Relay and Accessory Power Socket Relay Connector End View

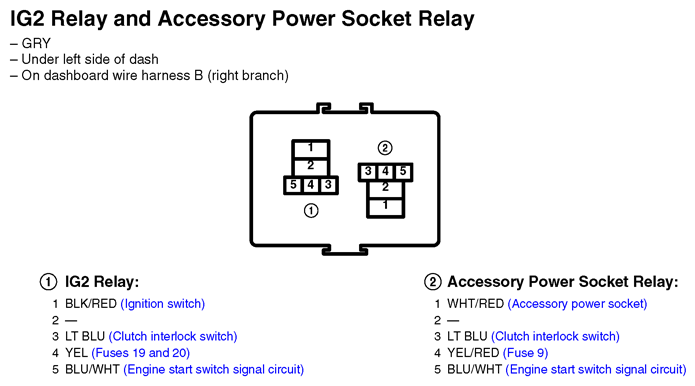

Fig 1: IG2 Relay and Accessory Power Socket Relay Connector End View
G11250412Courtesy of AMERICAN HONDA MOTOR CO., INC.
