Home >> Honda >> 2008 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.

Power Window Switch

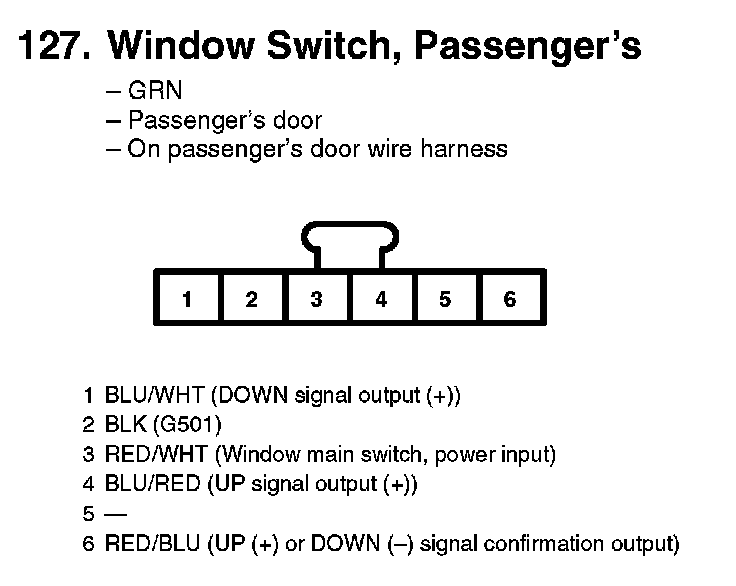

127. Window Switch, Passenger's:

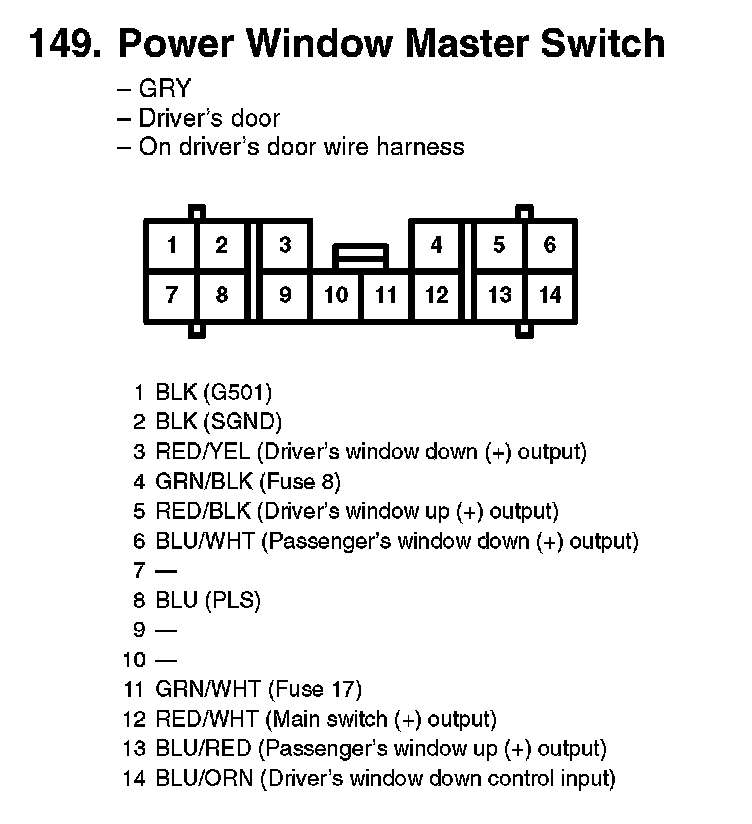

149. Power Window Master Switch:
