Traction Control Module: Testing and Inspection

VSA Modulator-control Unit Inputs and Outputs for 47P Connector

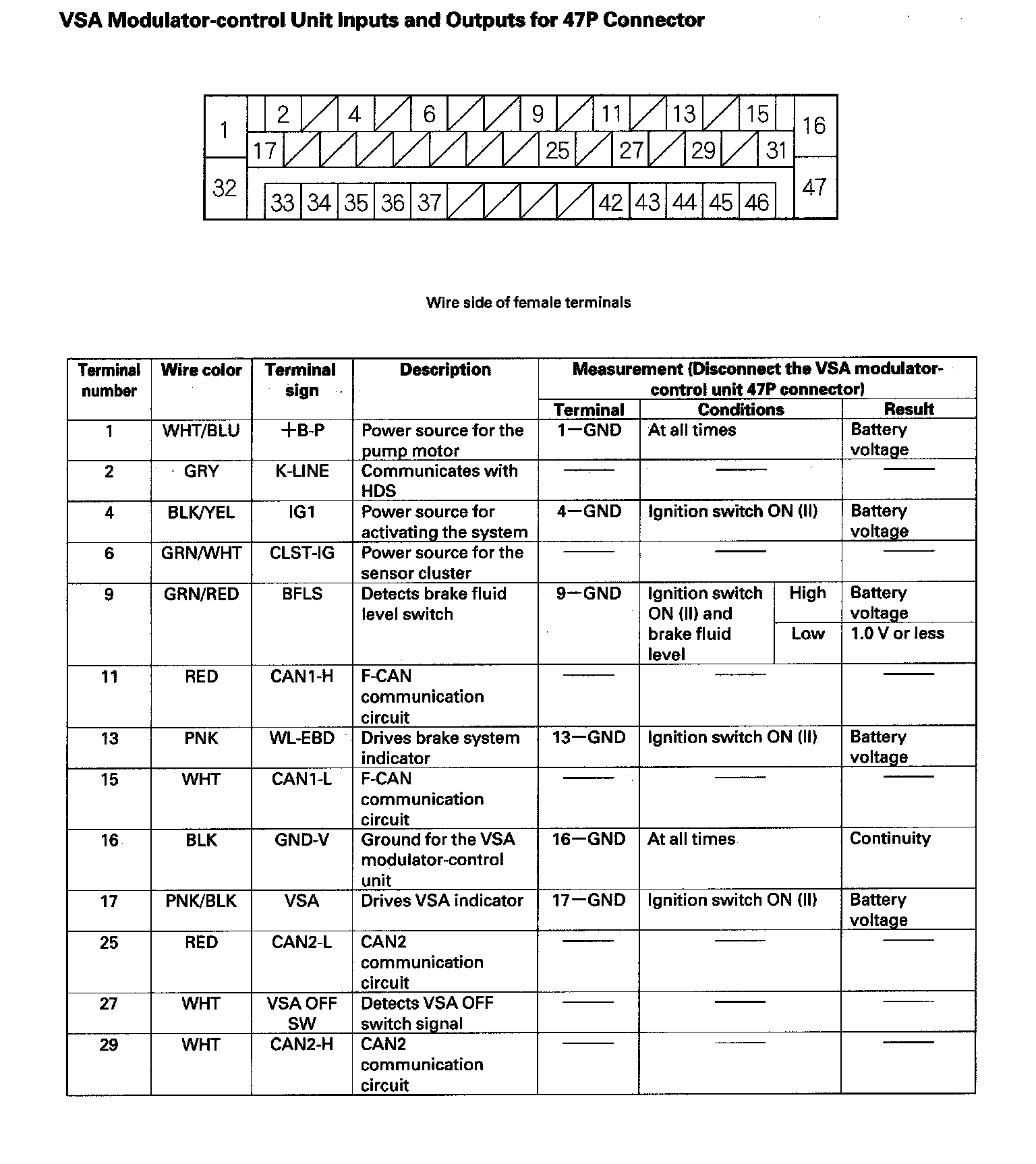

VSA Modulator-control Unit Inputs and Outputs for 47P Connector (Part 1):

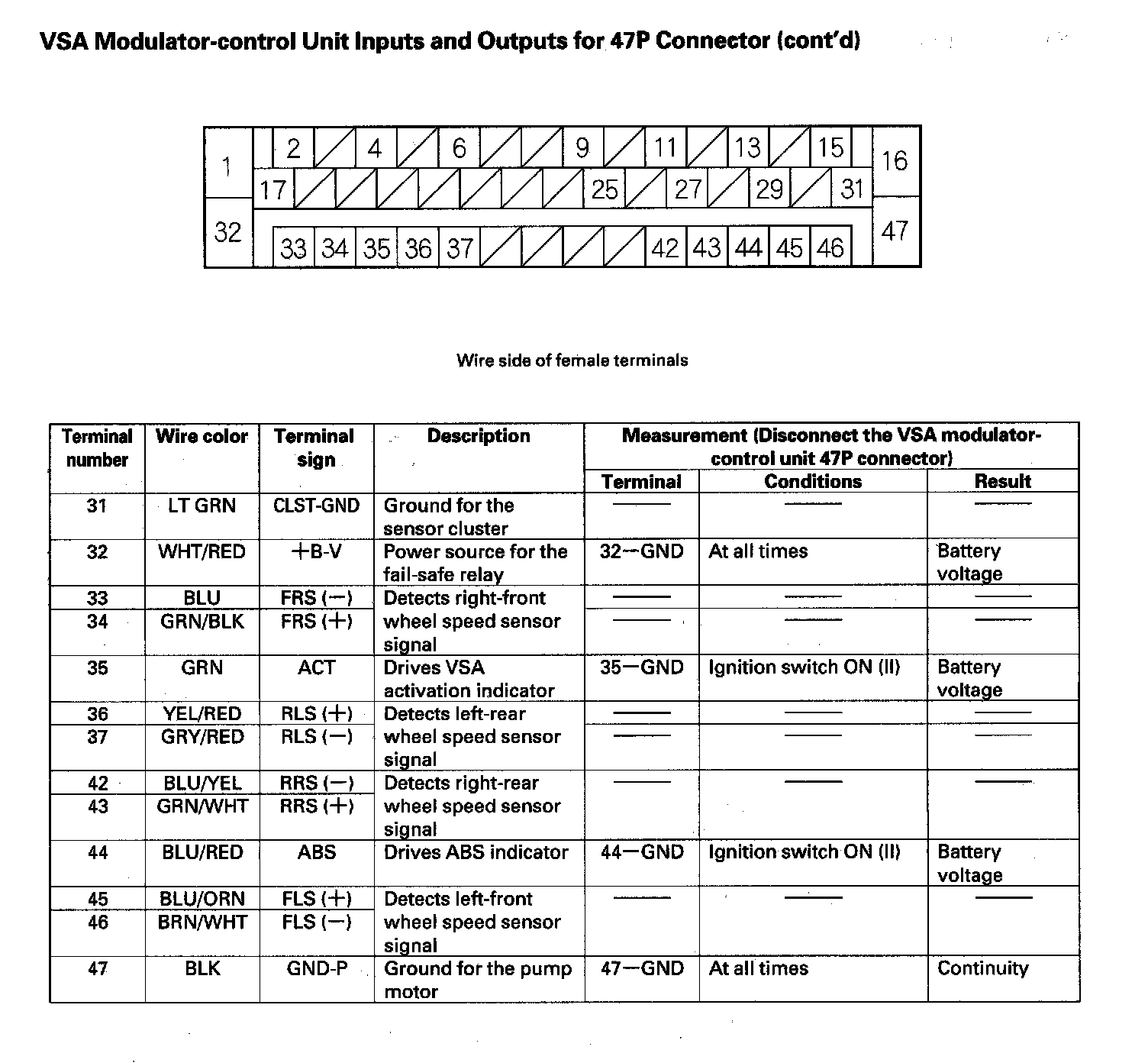

VSA Modulator-control Unit Inputs and Outputs for 47P Connector (Part 2):
