Service Specifications

Flywheel

Torque the flywheel mounting bolts in a crisscross pattern in several steps.

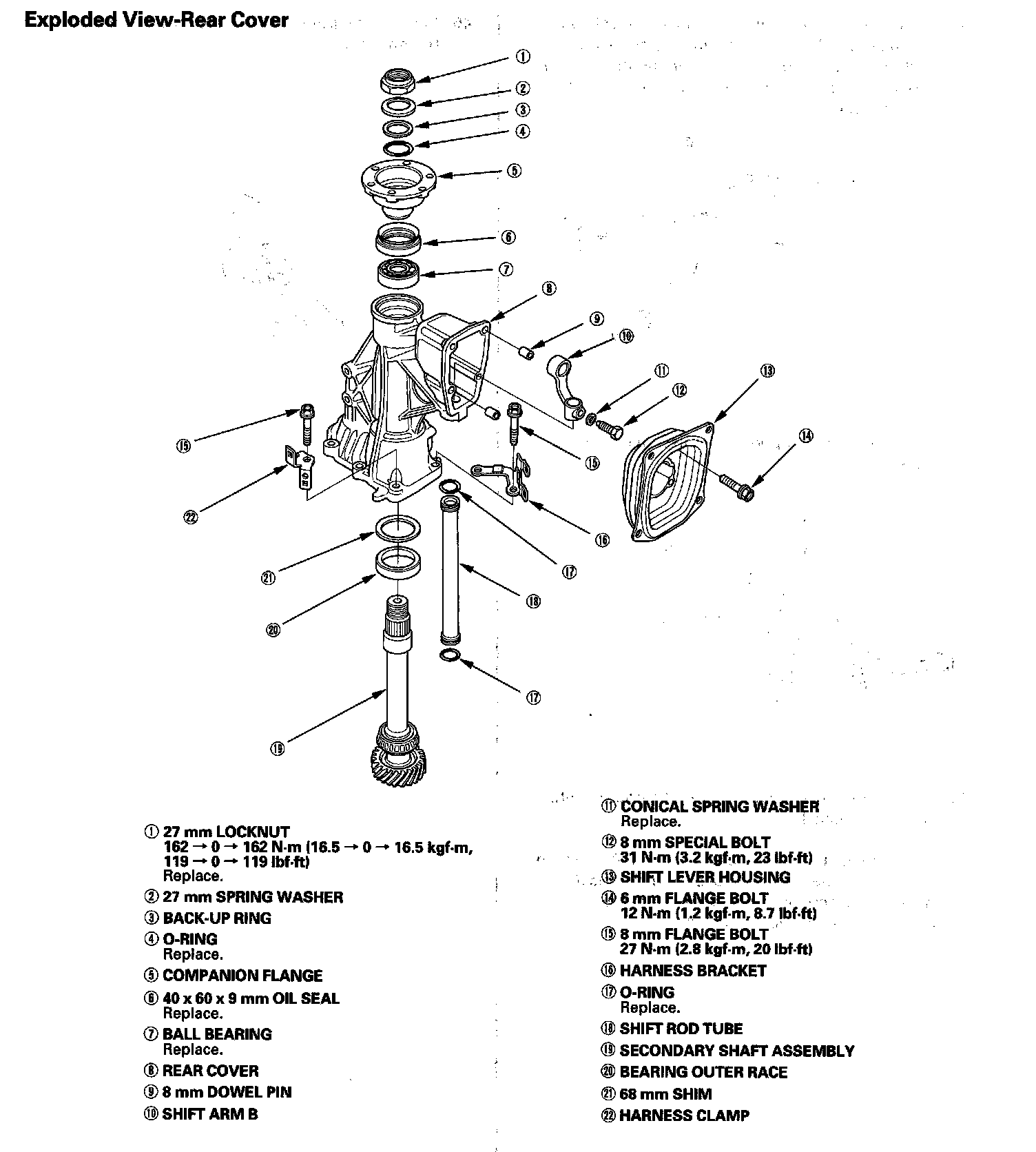

Rear Cover

Rear Cover:

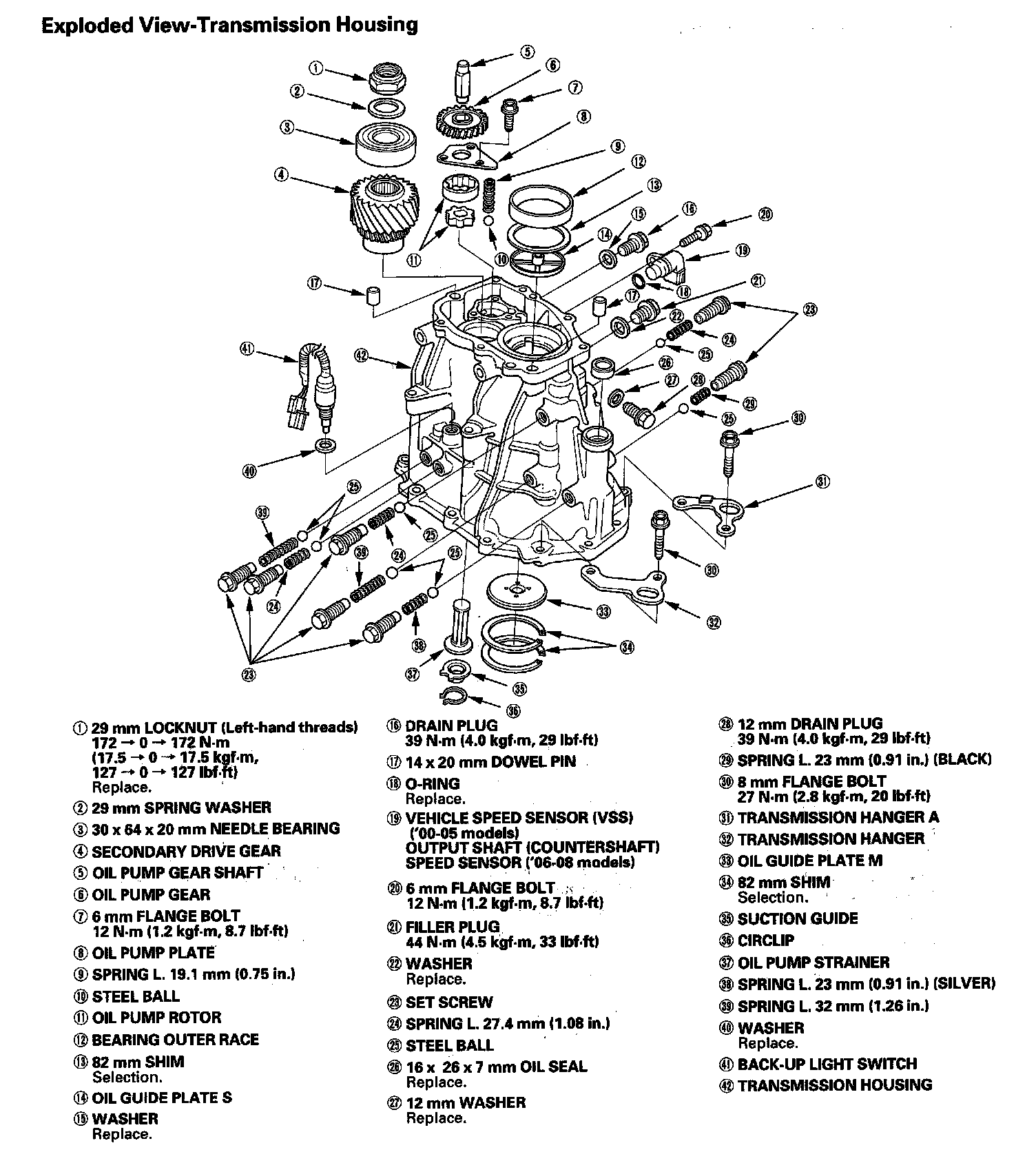

Transmission Housing

Transmission Housing:

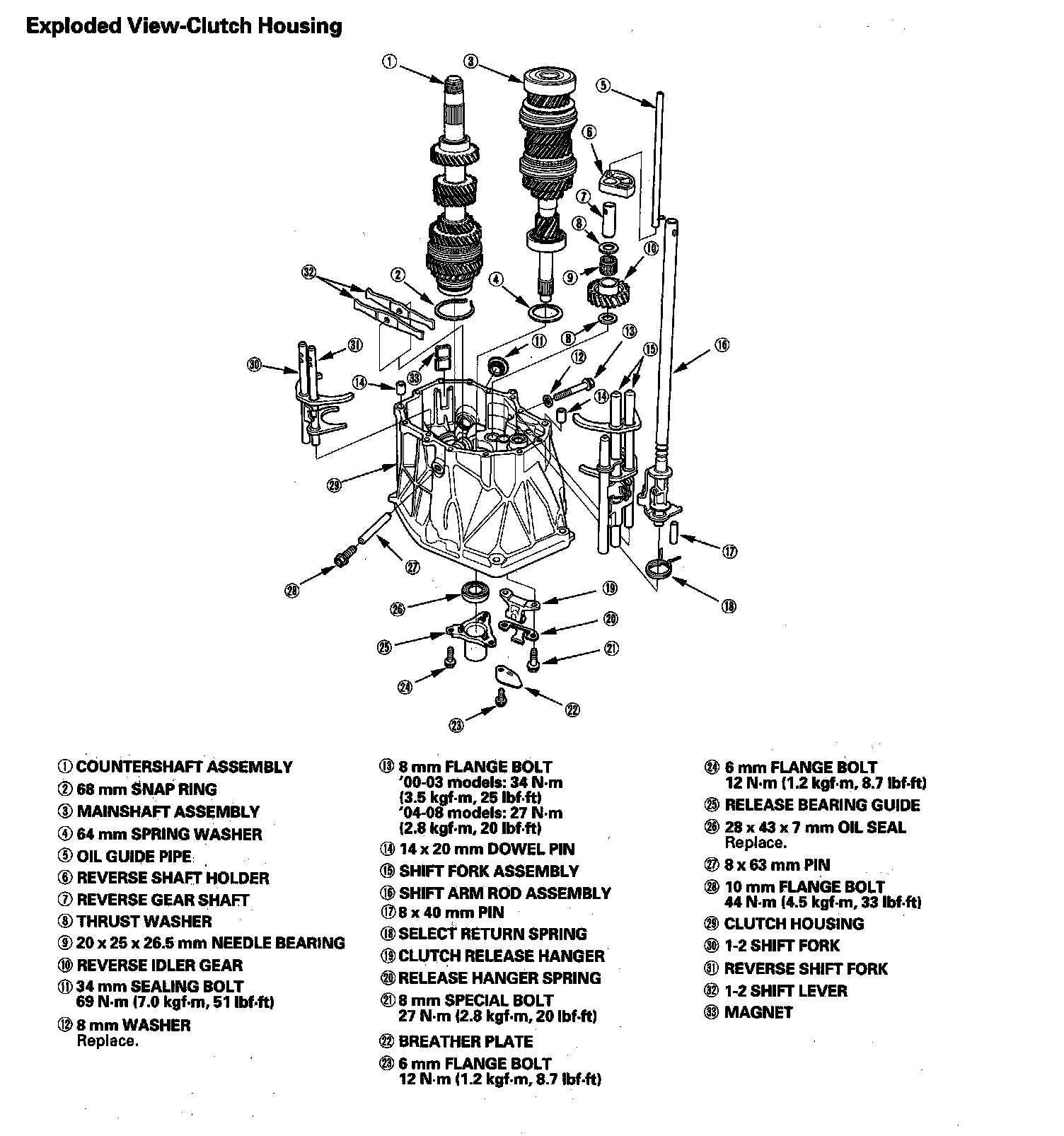

Clutch Housing

Clutch Housing:





Countershaft

Countershaft:





For information regarding Transmission Overhaul Specifications, please refer to Service and Repair. Service and Repair
