Steering Control Module: Testing and Inspection

Control Module Pinout Values

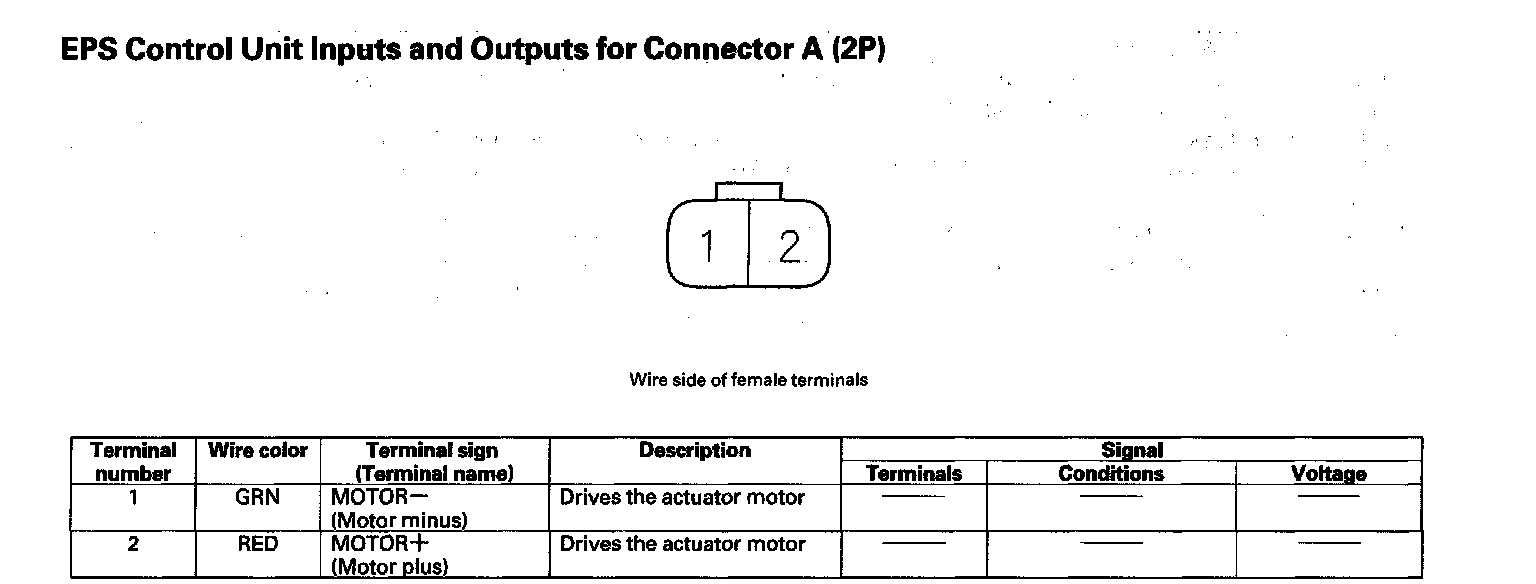

EPS Control Unit Inputs And Outputs For Connector A (2P):

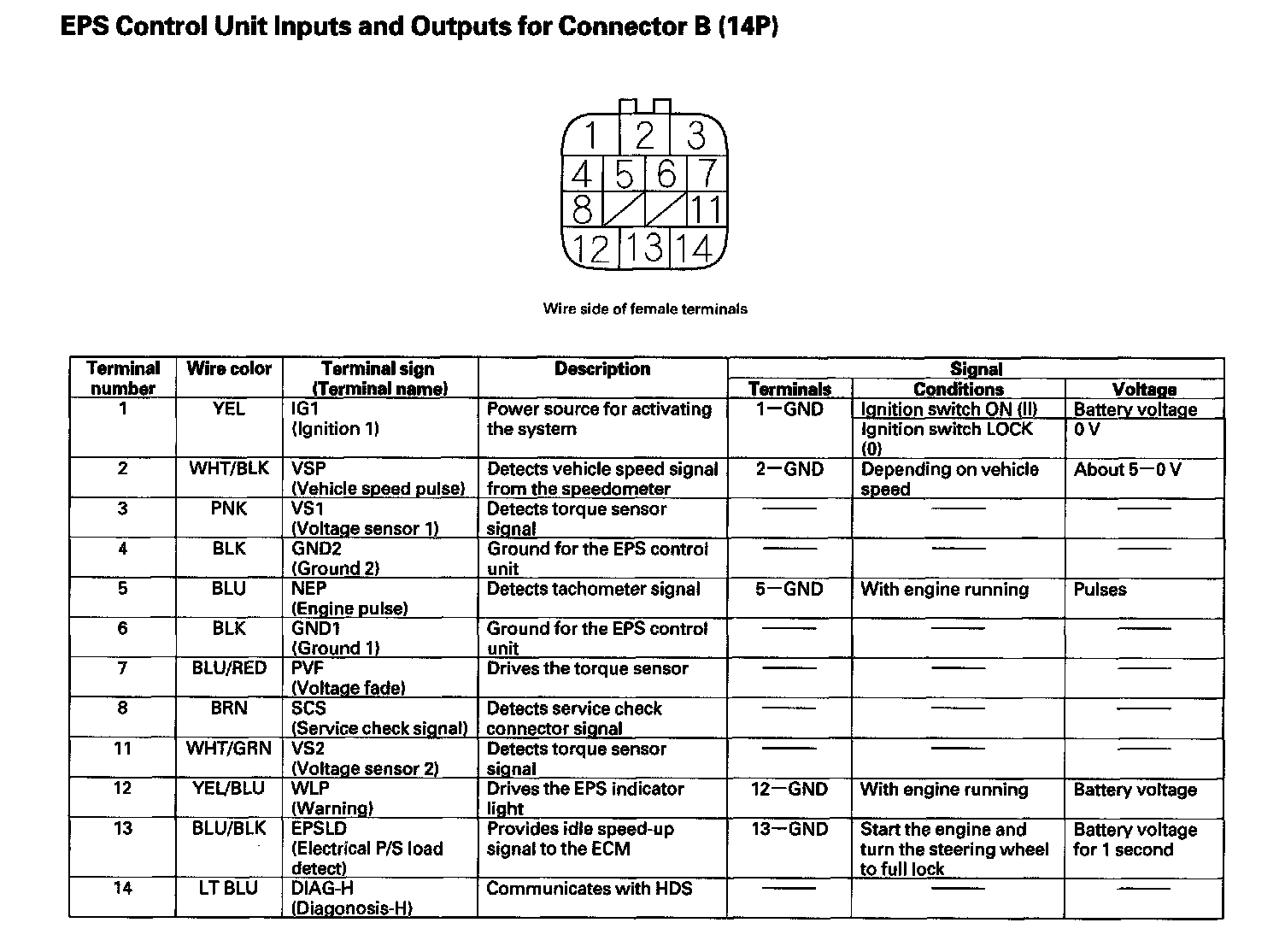

EPS Control Unit Inputs And Outputs For Connector B (14P):

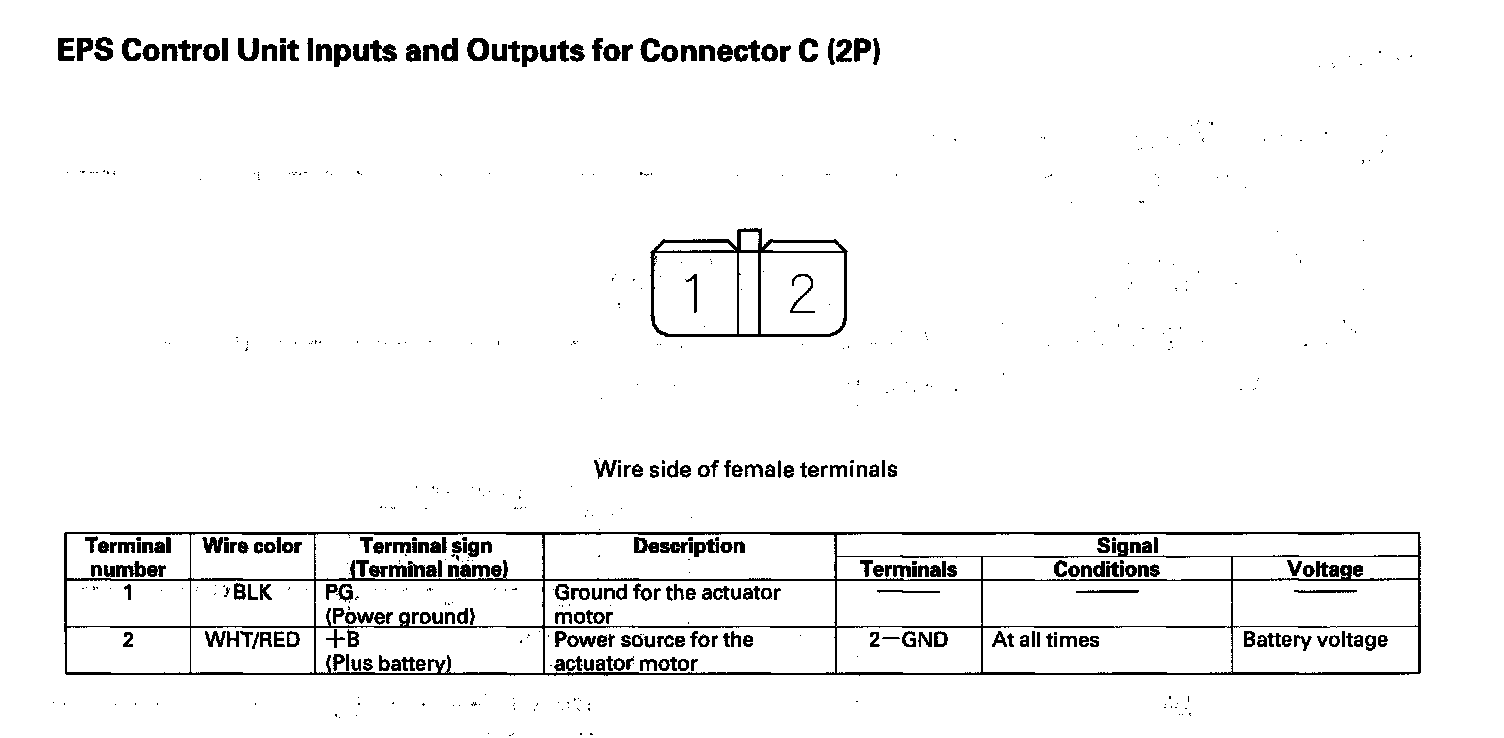

EPS Control Unit Inputs And Outputs For Connector C (2P):
