Audio-HVAC Display Unit Removal/Installation (Without Navigation)

Audio-HVAC Display Unit Removal/Installation

Without Navigation

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the dashboard.

1. Remove the audio unit Audio Unit Removal/Installation (With Navigation) and the center display visor. Center Display Visor Removal/Installation (Without Navigation)

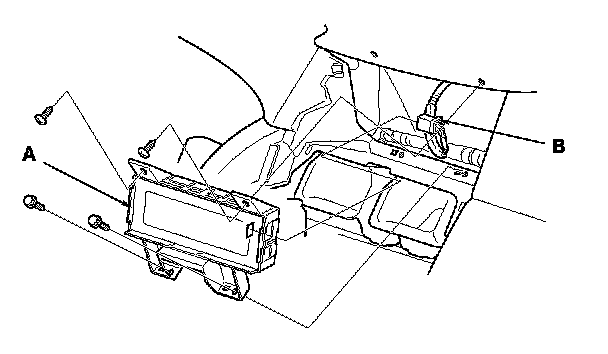

2. Remove the screws and bolts, then pull out the audio-HVAC display unit (A).

3. Disconnect the connector (B), and remove the audio-HVAC display unit.

4. Install the audio-HVAC display unit in the reverse order of removal.
