CMP Sensor B Replacement

CMP Sensor B Replacement

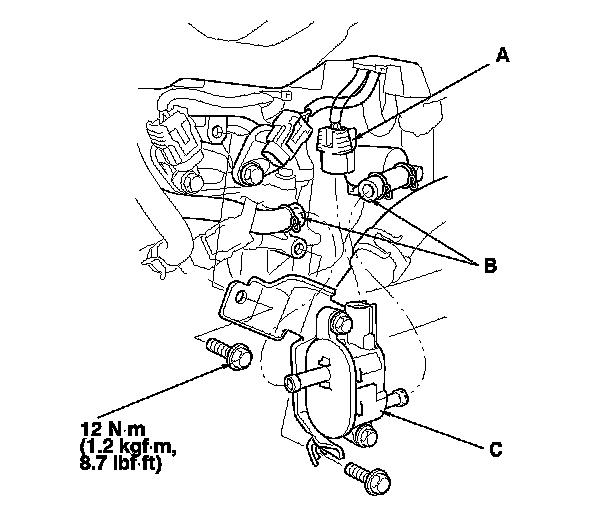

1. Disconnect the connector (A) and hoses (B) from the EVAP canister purge valve (C), then remove the EVAP canister purge valve assembly.

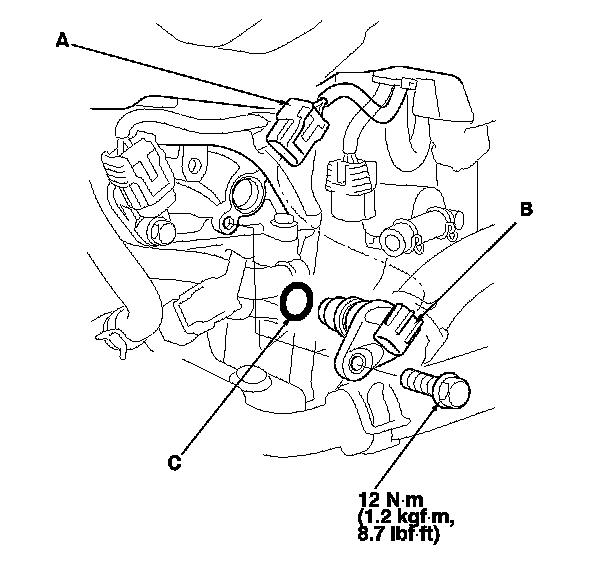

2. Disconnect the CMP sensor B connector (A).

3. Remove CMP sensor B (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
