Subframe: Service and Repair

Subframe Replacement

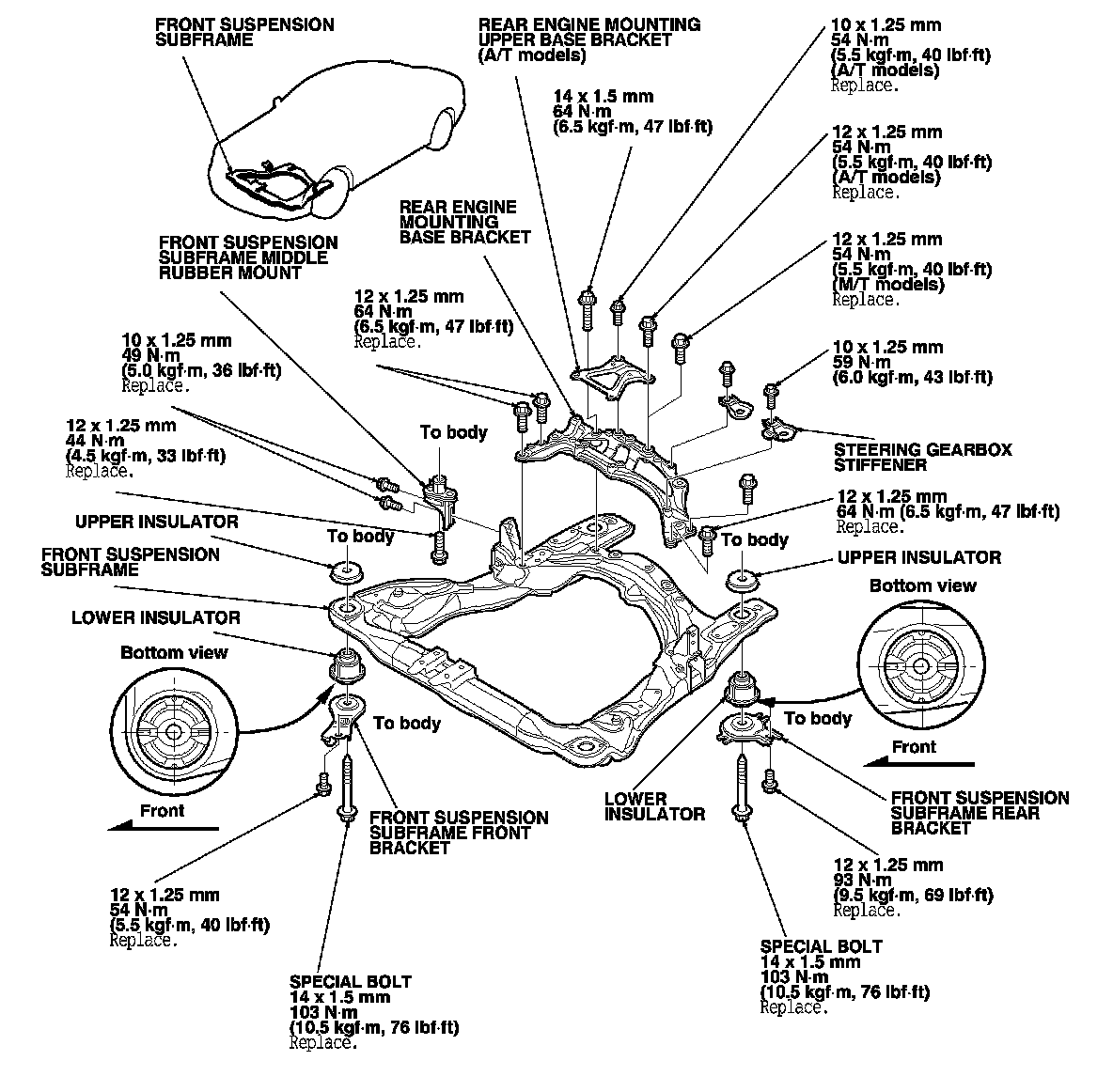

Front Subframe Torque

After removing the subframe mounting bolts, the front suspension subframe middle rubber mount mounting bolts, the front suspension subframe rear bracket mounting bolts, the rear engine mounting base bracket mounting bolts, and the rear engine mounting upper base bracket mounting bolts (A/T models), be sure to replace them with new ones.
