Audio-HVAC Subdisplay Unit Removal/Installation (With Navigation)

Audio-HVAC Subdisplay Unit Removal/Installation

With Navigation

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the dashboard.

1. Remove the dashboard center vent. Dashboard Center Vent Removal/Installation

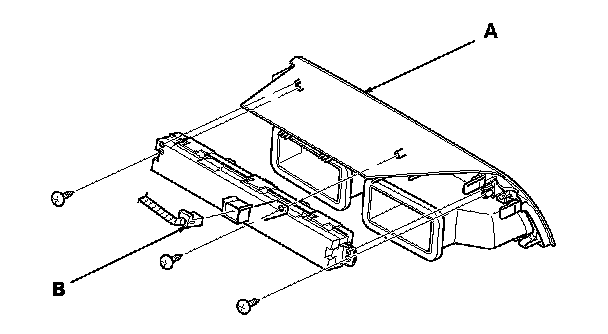

2. Remove the screws, then pull out the audio-HVAC subdisplay unit (A).

3. Disconnect the connector (B), and remove the audio-HVAC subdisplay unit.

4. Install the audio-HVAC subdisplay unit in the reverse order of removal.
