Intake Manifold

Intake Manifold Torque and Sequence

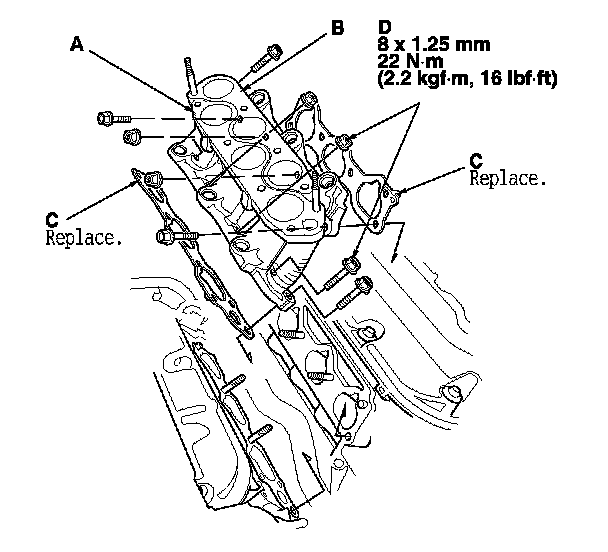

Tighten the injector base mounting bolts/nuts in a crisscross pattern in three steps, beginning with the inner nuts.

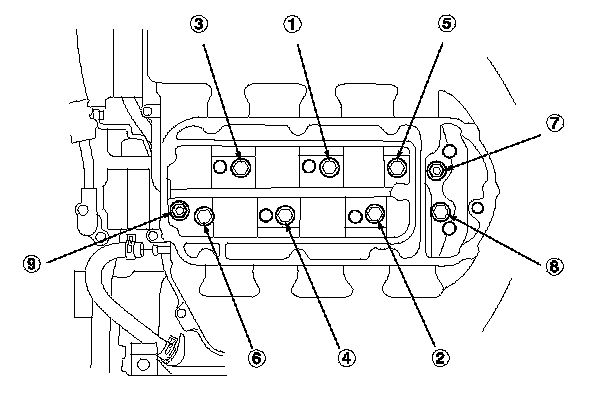

Intake manifold. Tighten the bolts and nuts sequentially in three steps.

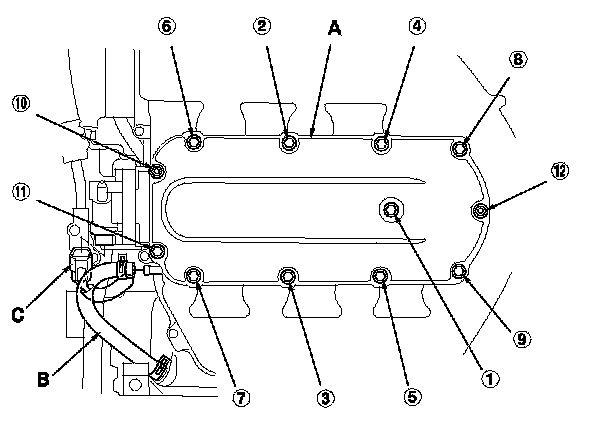

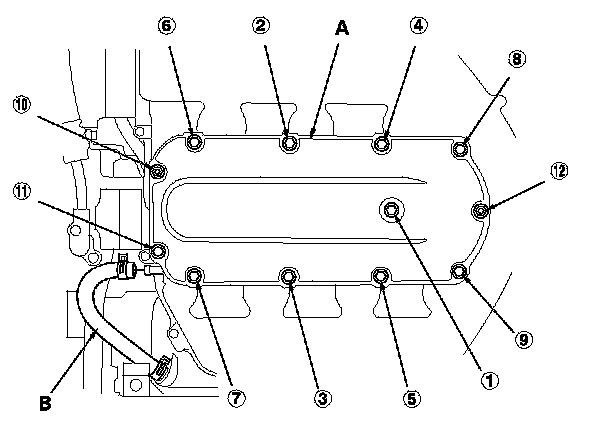

Upper cover (A). Tighten the bolts and nuts sequentially in three steps.






J35Z2 engine








J35Z3 engine
