SRS Unit Replacement

SRS Unit Replacement

Removal

NOTE: If you are only disconnecting SRS unit connector A, skip step 2.

1. Do the battery terminal disconnection procedure, Procedures then wait at least 3 minutes before starting work.

2. Remove the dashboard center lower cover. Dashboard Center Lower Cover Removal/Installation

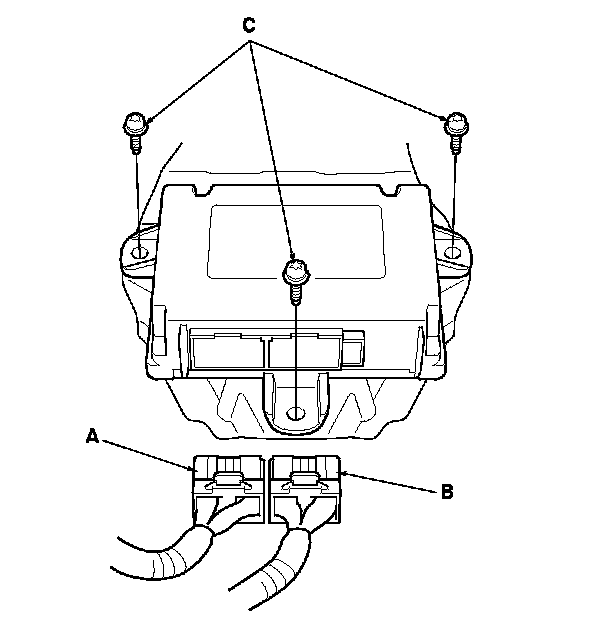

3. Disconnect SRS unit connector A (28P), SRS unit connector B (28P), and remove the TORX bolts (C), then remove the SRS unit.






Installation

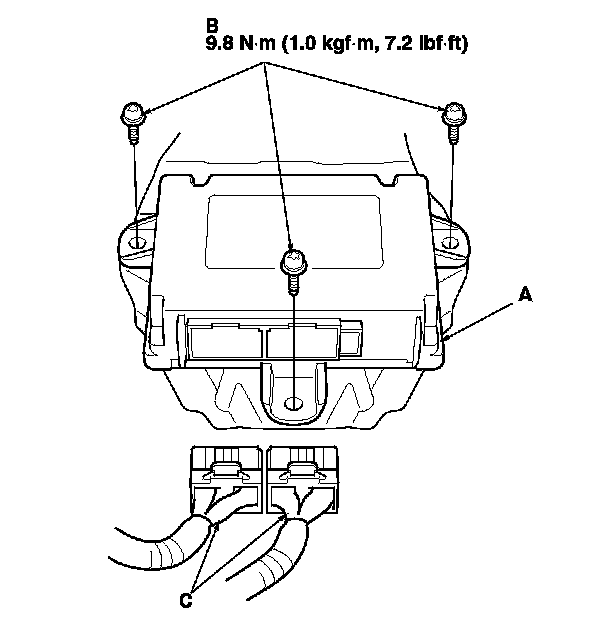

1. Install the SRS unit (A) with new TORX bolts (B), then connect the connectors (C) to the SRS unit; push them into position until they click.
NOTE: Be sure the SRS unit is sitting squarely against its bracket before torquing the TORX bolts.

2. Do the battery terminal reconnection procedure. Procedures

3. Clear any DTCs. Initial Inspection and Diagnostic Overview

4. After installing the SRS unit, confirm proper system operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.

5. Reinstall all removed parts.
