IG2 Relay And Start Relay Connector View (Honda Accessory: A/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

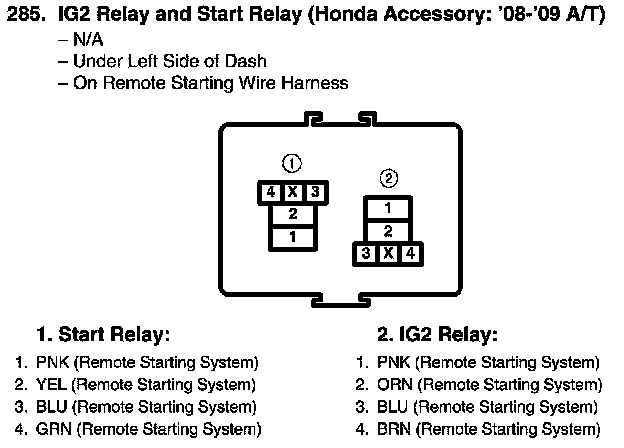

IG2 Relay And Start Relay Connector View (Honda Accessory: A/T)
