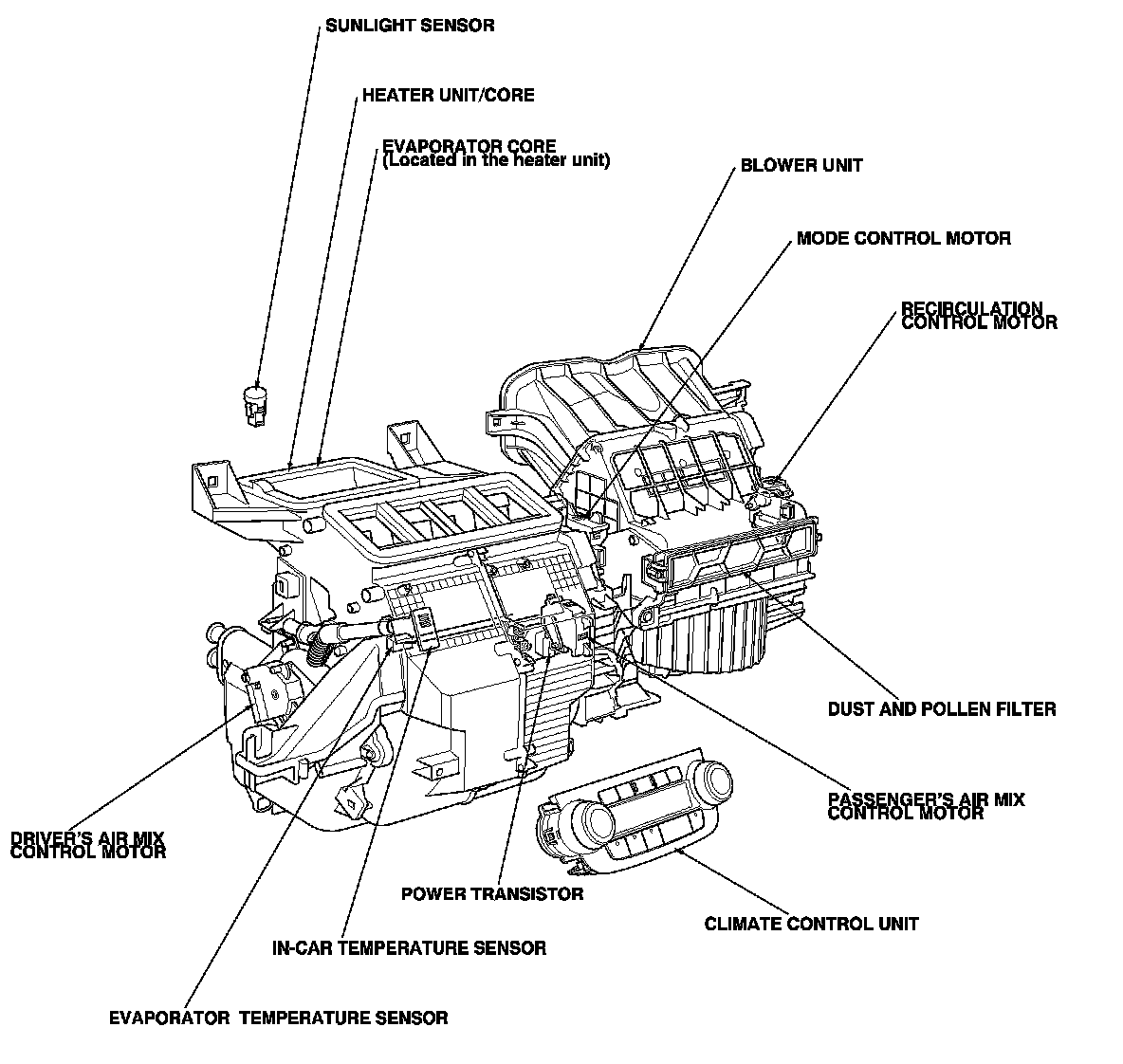

Climate Control System Component Location Index (With Climate Control)




Climate Control System Component Location Index
