Resonator Removal/Installation

Remove the engine cover.
Remove the bolts (A).

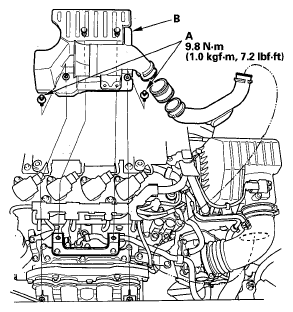

Fig 1: Identifying Resonator Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the resonator (B).
Install the parts in the reverse order of removal.
