System Specifications

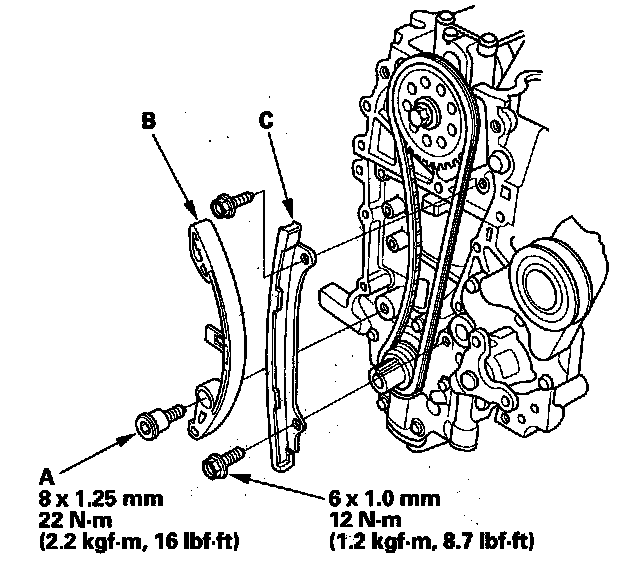

Timing Chain Tensioner

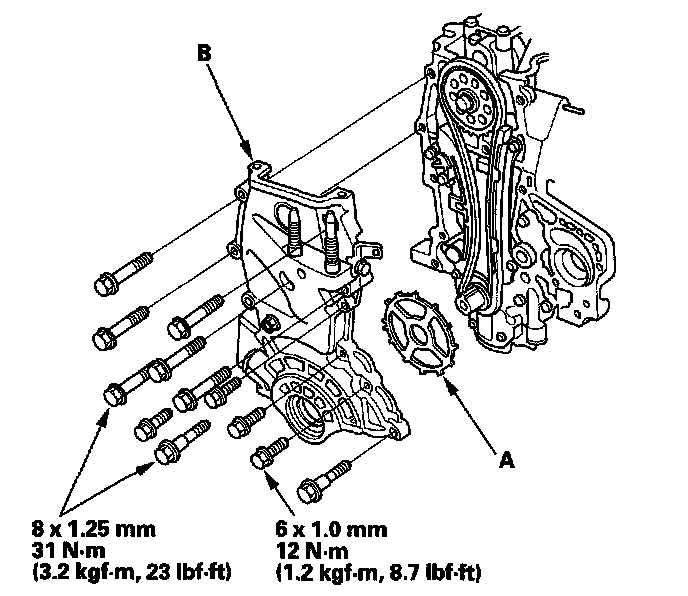

Timing Cover






Crankshaft Pulley

Tighten the crankshaft pulley bolt to 37 N-m (3.8 kgf-m, 27 lbf-ft)
If the pulley bolt or crankshaft are new, tighten the bolt to 177 N-m (18.0 kgf-m, 130 lbf-ft), then remove the bolt and tighten it to 37 N-m (3.8 kgf-m, 27 lbf-ft).
Then tighten the bolt an additional 90 °.
