Cruise Control Switch: Service and Repair

Cruise Control Combination Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations 4-door, SRS Component Location Index (4-Door) 2-door, SRS Component Location Index (2-Door) and precautions and procedures, Technician Safety Information before doing repairs or service.

1. Remove the driver's airbag. Drivers Airbag Replacement

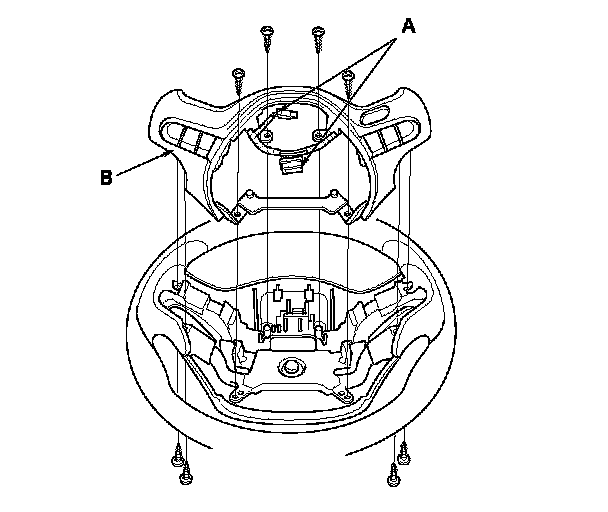

2. Disconnect the connectors (A), then remove the steering wheel trim (B).

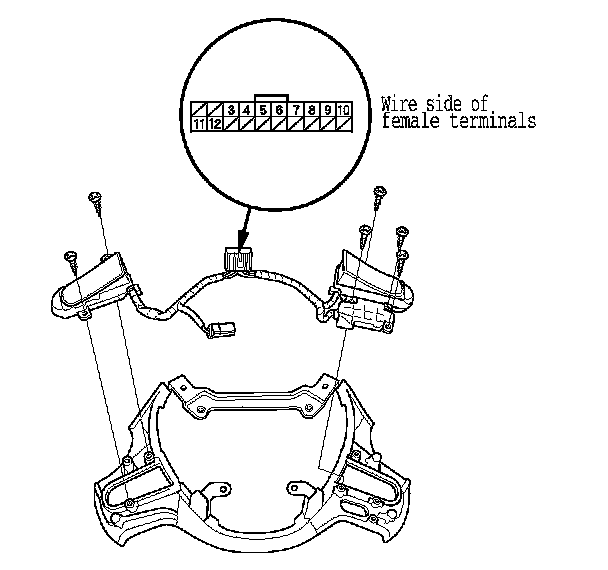

3. Remove the cruise control combination switch.

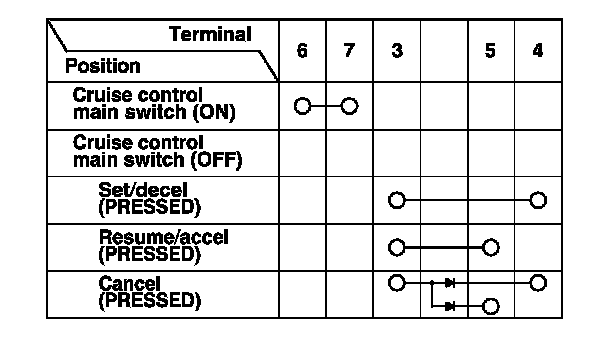

4. Check for continuity between the terminals in each cruise control combination switch position according to the table.
- If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.

- If there is no continuity in one or more positions, replace the cruise control combination switch.
