CMP Sensor Replacement

CMP Sensor Replacement

1. Remove the cowl cover and the under-cowl panel. Service and Repair

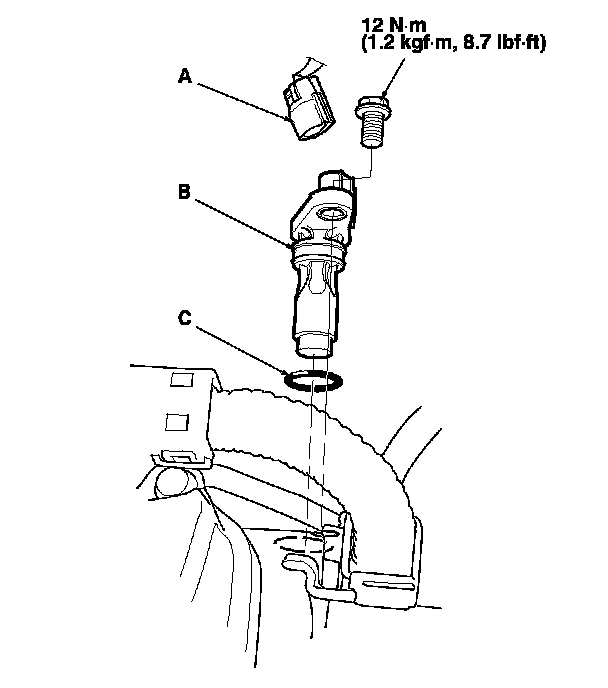

2. Disconnect the CMP sensor 3P connector (A).

3. Remove the CMP sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
