Variable Valve Timing Pressure Switch: Service and Repair

Rocker Arm Oil Pressure Sensor (EOP Sensor) Removal/Installation

1. Remove the cowl cover and the under-cowl panel. Service and Repair

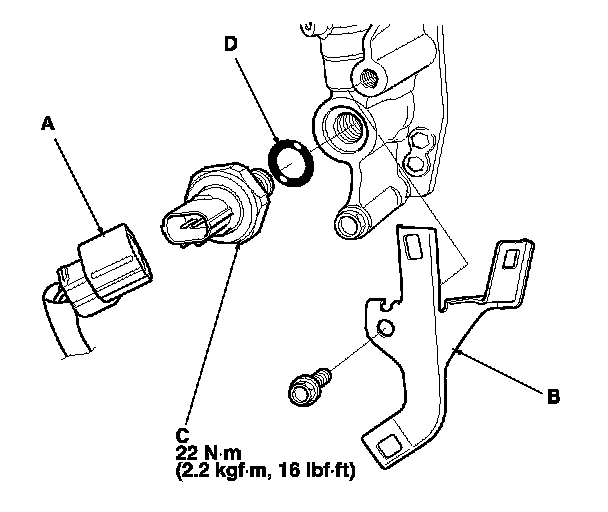

2. Disconnect the rocker arm oil pressure sensor (EOP sensor) connector (A).

3. Remove the bracket (B) and the rocker arm oil pressure sensor (EOP sensor) (C).

4. Install the parts in the reverse order of removal with a new O-ring (D).
