View 116 - Input Shaft (Mainshaft) Speed Sensor Connector View (A/T)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

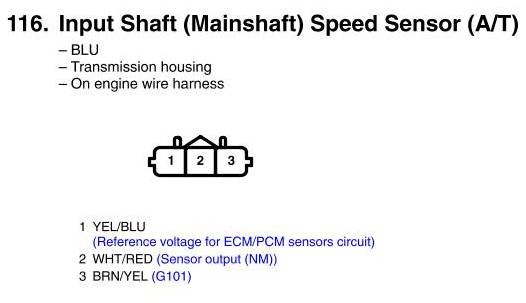

View 116 - Input Shaft (Mainshaft) Speed Sensor Connector View (A/T)
