Interior Light Switch Test/Replacement

Interior Light Switch Test/Replacement

'09 model with overhead console

1. Remove the front individual map lights. Front Individual Map Light Test/Replacement

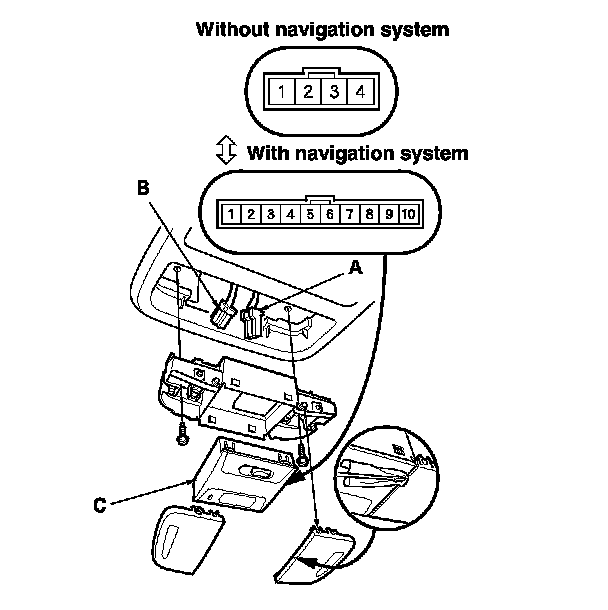

2. Disconnect the interior light switch 10P*1 (4P*2) connector (A) and map light 3P connector (B).
*1: With navigation system

*2: Without navigation system

3. Remove the interior light switch (C).

4. At the interior light switch 10P*1 (4P*2) connector, check for continuity between terminals No. 1*1 (No. 4*2) and No. 9*1 (No. 1*2).
*1: With navigation system

*2: Without navigation system

- There should be continuity when the interior light switch is in the DOOR position.

- There should be no continuity when the interior light switch is in the OFF position.

5. If the continuity check is not as specified, replace the switch.

6. Install the switch and light in the reverse order of removal.
