Fuse to Components Index

Fuse to Components Index

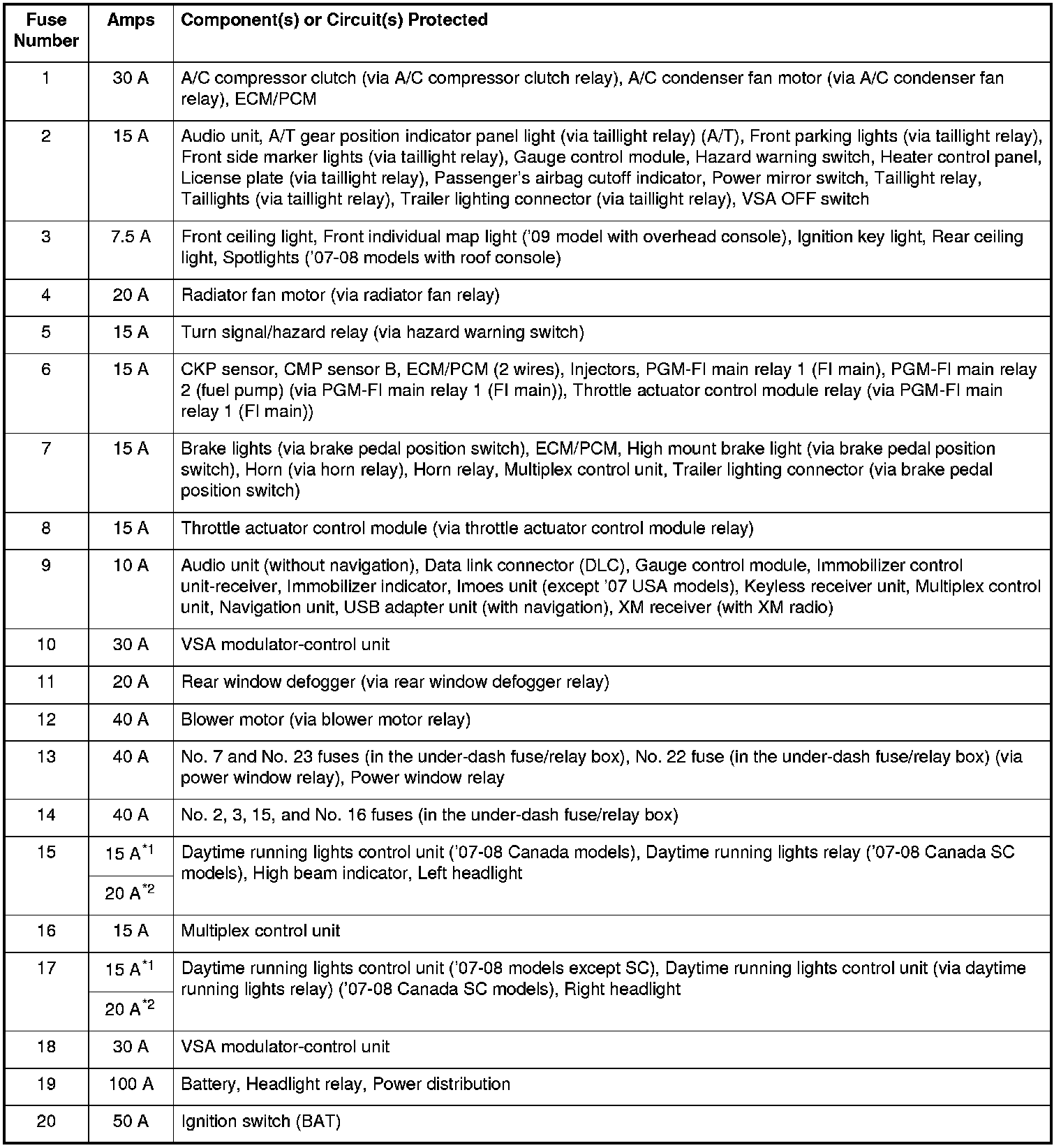

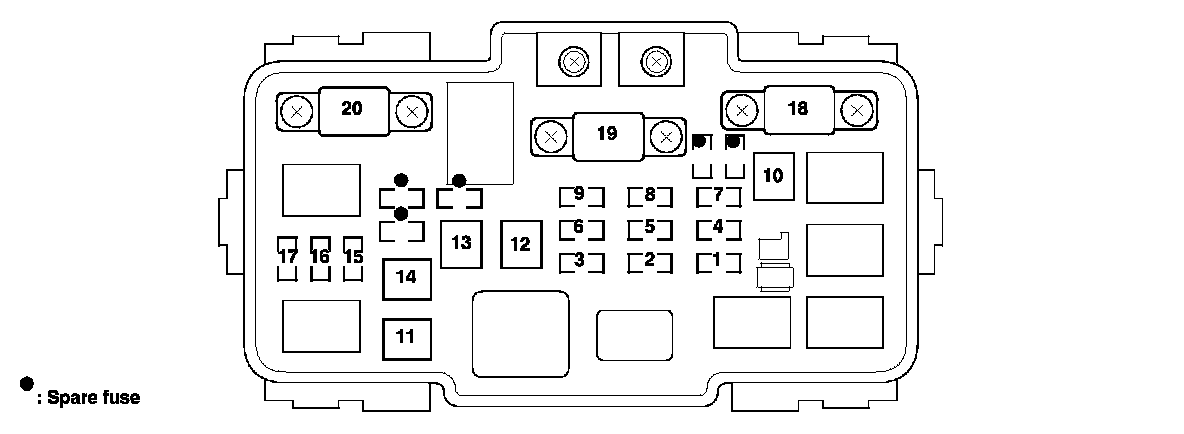

Under-hood Fuse/Relay Box





*1: '07-08 except SC models, and '09 model

*2: '07-08 SC models

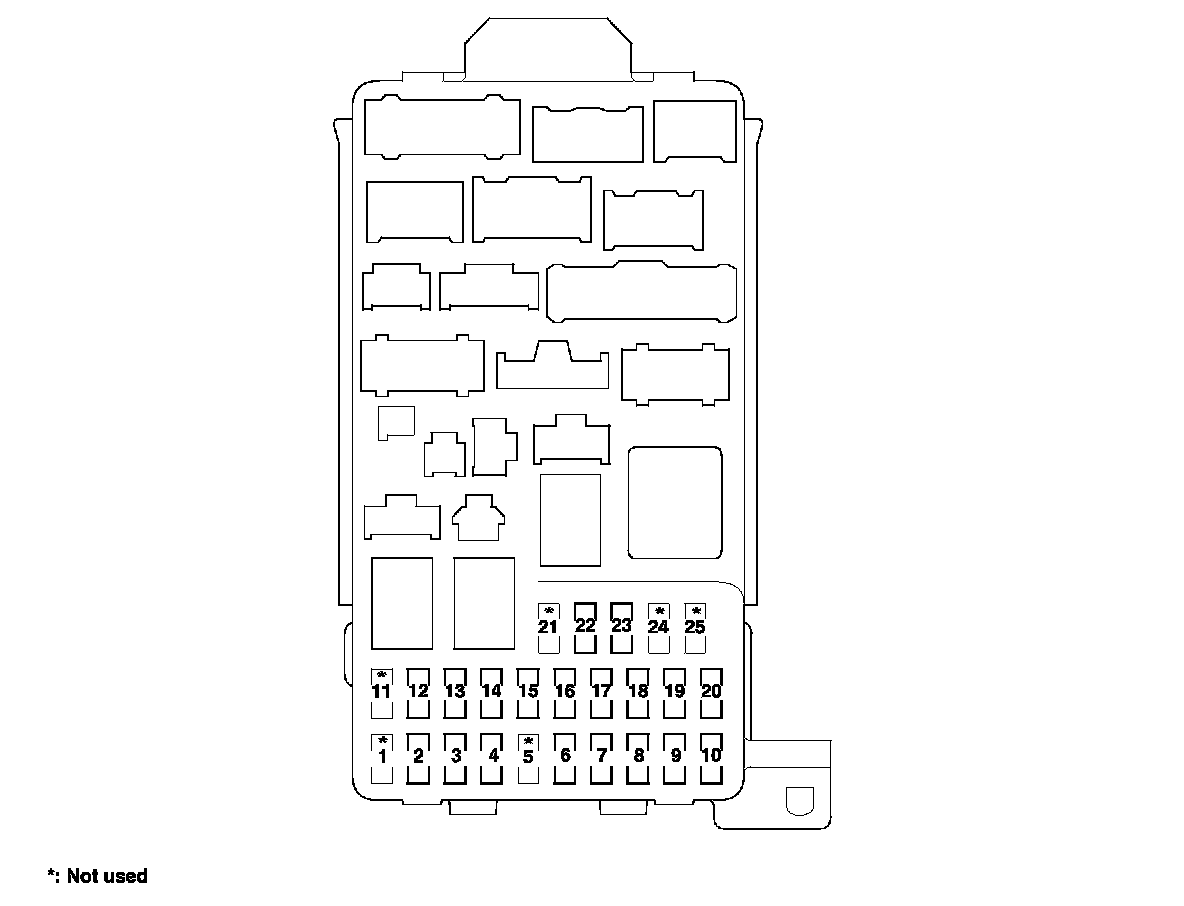

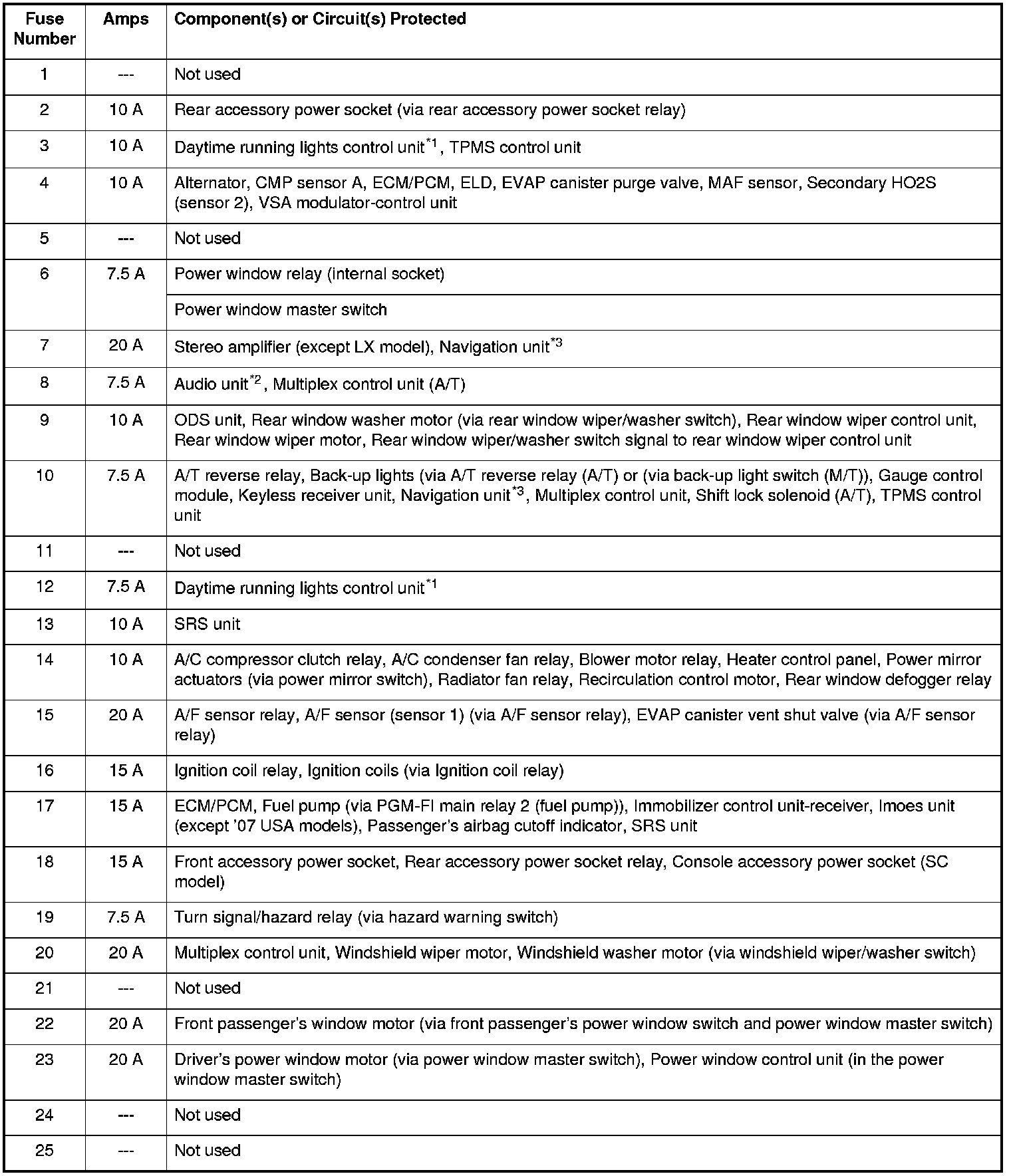

Under-dash Fuse/Relay Box





*1: '07-08 Canada models, and '09 model

*2: Without navigation system

*3: With navigation system
