Secondary HO2S Replacement

Secondary HO2S Replacement

Special Tools Required

- O2 sensor socket wrench, Snap-on YA8875 or SWR2, or equivalent, commercially available

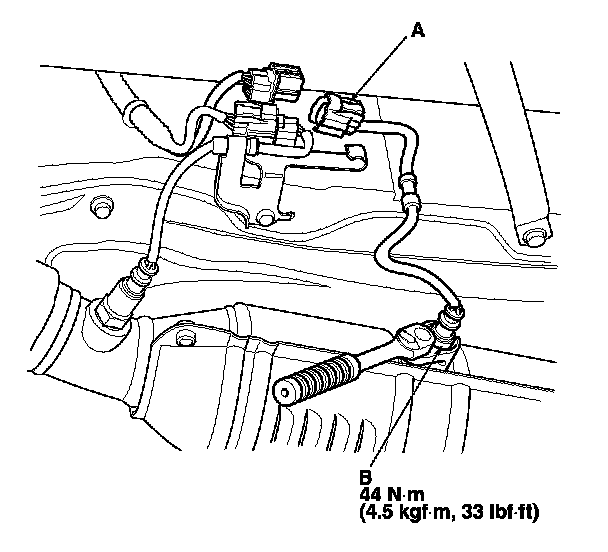

1. Disconnect the secondary HO2S 4P connector (A), then remove the secondary HO2S (B).

2. Install the parts in the reverse order of removal.
