Wiper/Washer Switch Test/Replacement

Wiper/Washer Switch Test/Replacement

1. Remove the driver's dashboard lower cover. Drivers Dashboard Lower Cover Removal/Installation

2. Remove the steering column covers. Service and Repair

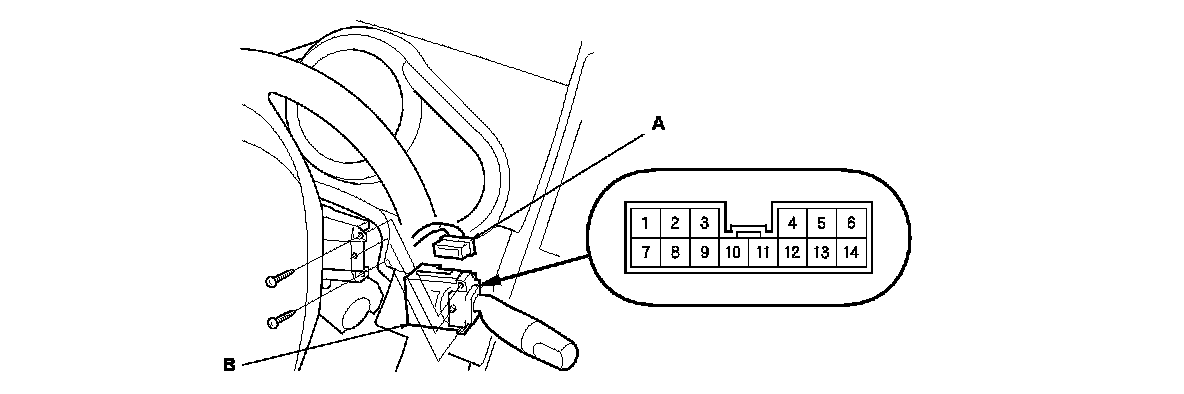

3. Disconnect the 14P connector (A) from the wiper/washer switch (B).

4. Remove the two screws, then pull out the wiper/washer switch.






5. Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

- If the terminals look OK, check for continuity between the terminals in each switch position according to the tables. If the continuity is not as specified, replace the switch.

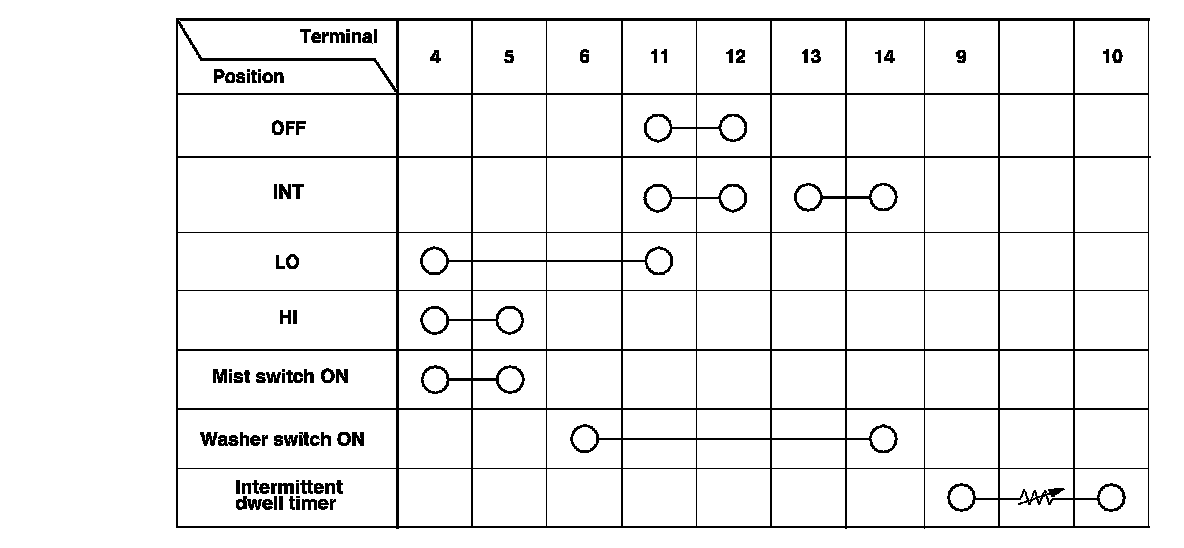

Windshield

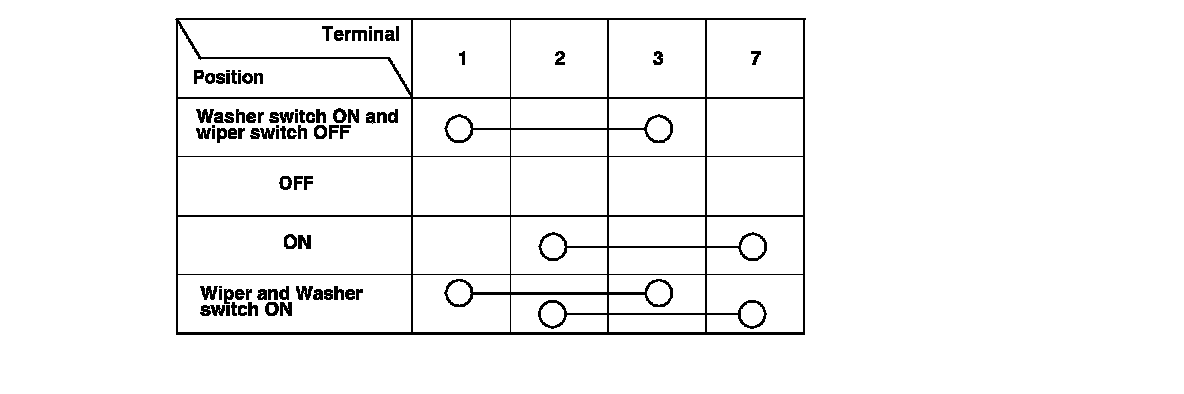

Rear Window
