Rear Window Wiper Intermittent Control Unit (View 191)
GRY
Left quarter panel
On floor wire harness (left branch)

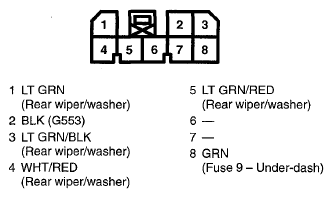

Fig 1: Rear Window Wiper Intermittent Control Unit Connector Terminal (View 191)
