System Indicator - Without MID
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

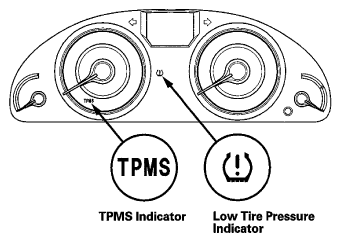

The TPMS (tire pressure monitoring system) has the low tire pressure indicator and the TPMS indicator.
The Low Tire Pressure Indicator
- If the system detects low tire pressure in any of the four tires, the low tire pressure indicator comes on.
- When the indicator comes on, inflate the tires and test-drive the vehicle at 28 mph (45 km/h) or more for at least 1 minute, and the low tire pressure indicator will go off.
- If the TPMS control unit detects a problem in the system during an indication of low tire pressure, it turns off the low tire pressure indicator, stores the DTC(s), and turns on the TPMS indicator.
The TPMS Indicator
- If a problem is detected in the system, the TPMS indicator comes on.
- If low tire pressure and a problem in the system are detected, only the TPMS indicator comes on.
When the system is OK, the TPMS indicator and the low tire pressure indicator should come on when you turn the ignition switch to ON (II), and then go off 2 seconds later. If it doesn't, there is a problem with the system.
