Tailgate Outer Handle Switch Test/Replacement: Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Removal the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
Disconnect the 2P connector (A) from the tailgate outer handle switch.

Fig 1: Identifying Tailgate Outer Handle Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two nuts (A).

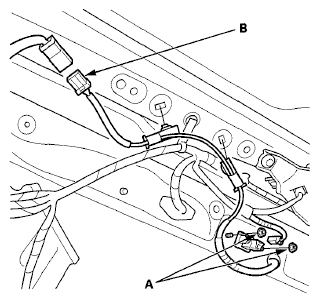

Fig 2: Identifying Rearview Camera 6P Connector And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If equipped, disconnect the rearview camera 6P [12P] connector (B).
[]: With navigation
Replace the tailgate outer handle switch (A). A.

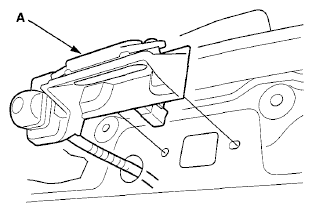

Fig 3: Identifying Tailgate Outer Handle Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: The illustration shows with rearview camera.
Install the new switch in the reverse order of removal.
