Tailgate Outer Handle Switch Test/Replacement: Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 2P connector (A) from the tailgate outer handle switch.

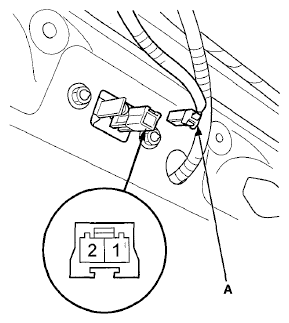

    Fig 1: Identifying Tailgate Outer Handle Switch Connector
    G06968713Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the figure below.

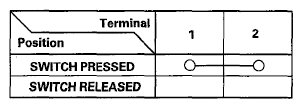

    Fig 2: Tailgate Outer Handle Switch Connector Continuity Chart
    G06968714Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the tailgate outer handle switch.
