'09-11 Models

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES , before performing repairs or service.

1. Remove the driver's airbag (see DRIVER S AIRBAG REPLACEMENT ).
2. Remove the steering wheel trim cover (A), then remove the cruise control combination switch (B).

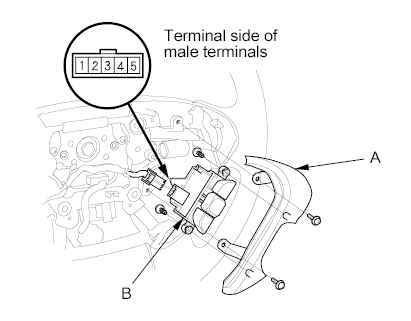

   Fig 1: Identifying Steering Wheel Trim Cover & Cruise Control Combination Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each cruise control combination switch position according to the table below.
   • If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or both positions, replace the cruise control combination switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).

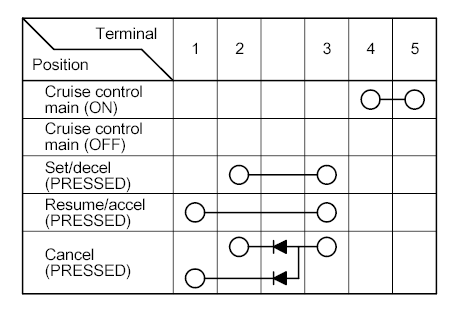

   Fig 2: Identifying Cruise Control Combination Switch Position Continuity Table
   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the cruise control combination switch in the reverse order of removal.
