Cruise Control: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

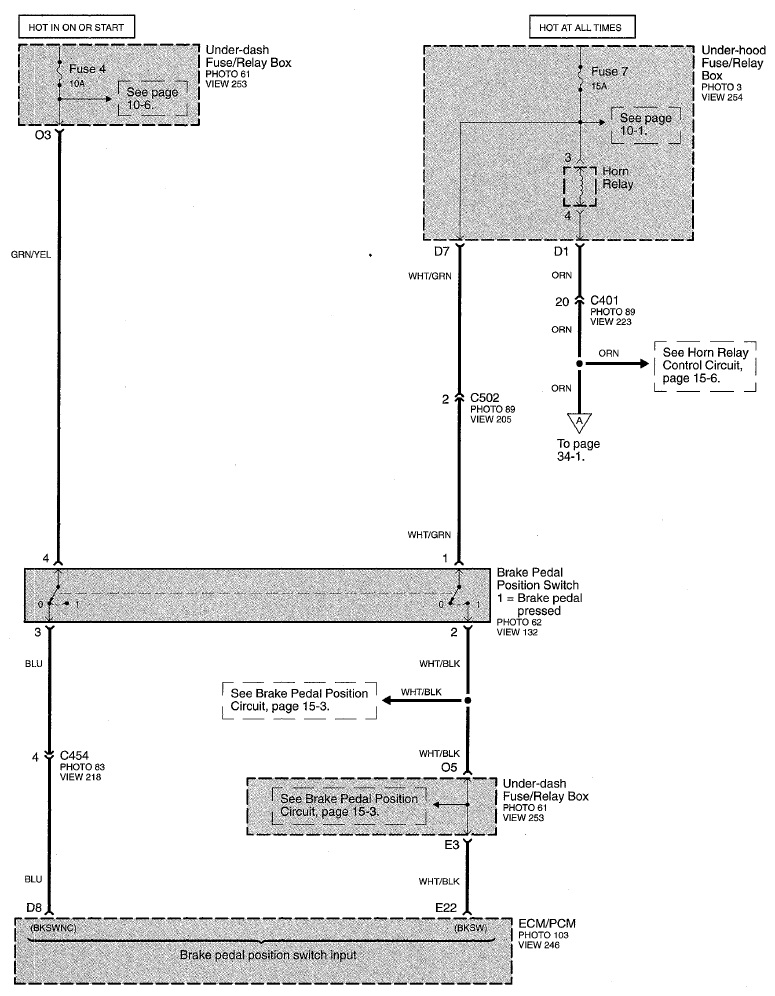

Fig 1: Cruise Control Circuit Diagram (Page 34)

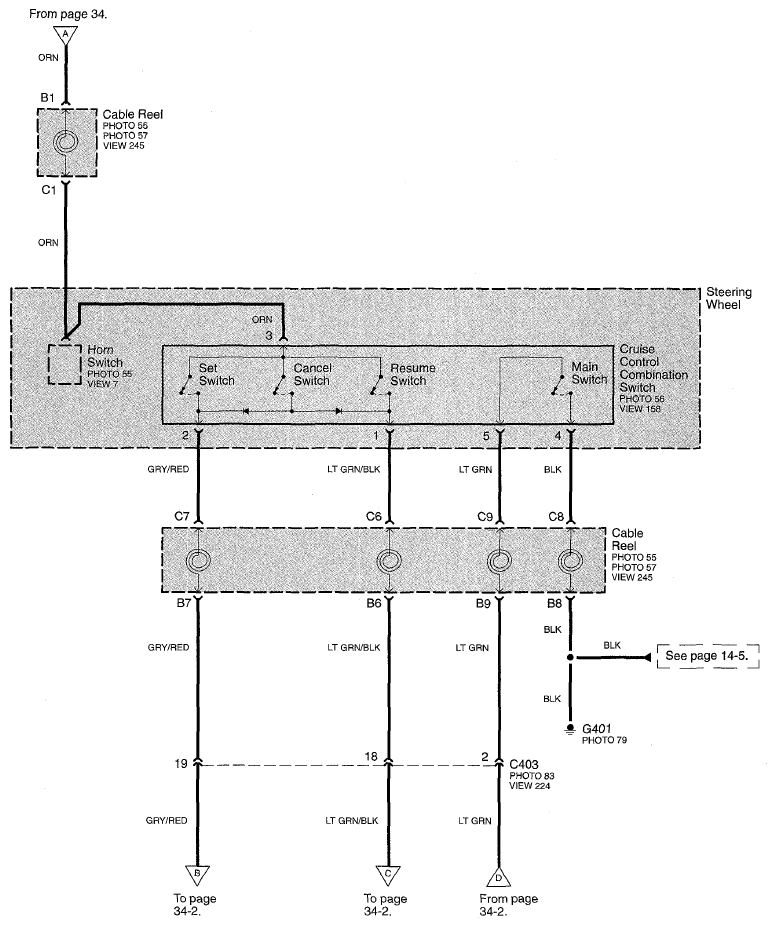

Fig 2: Cruise Control Circuit Diagram (Page 34-1)

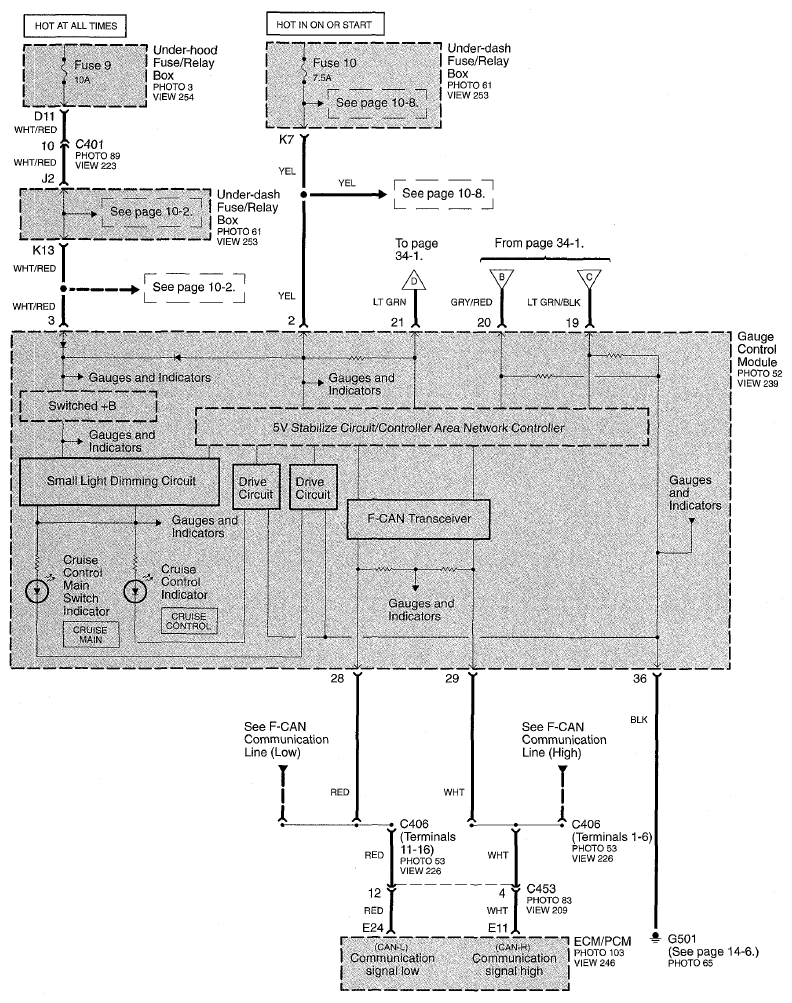

Fig 3: Cruise Control Circuit Diagram (Page 34-2)

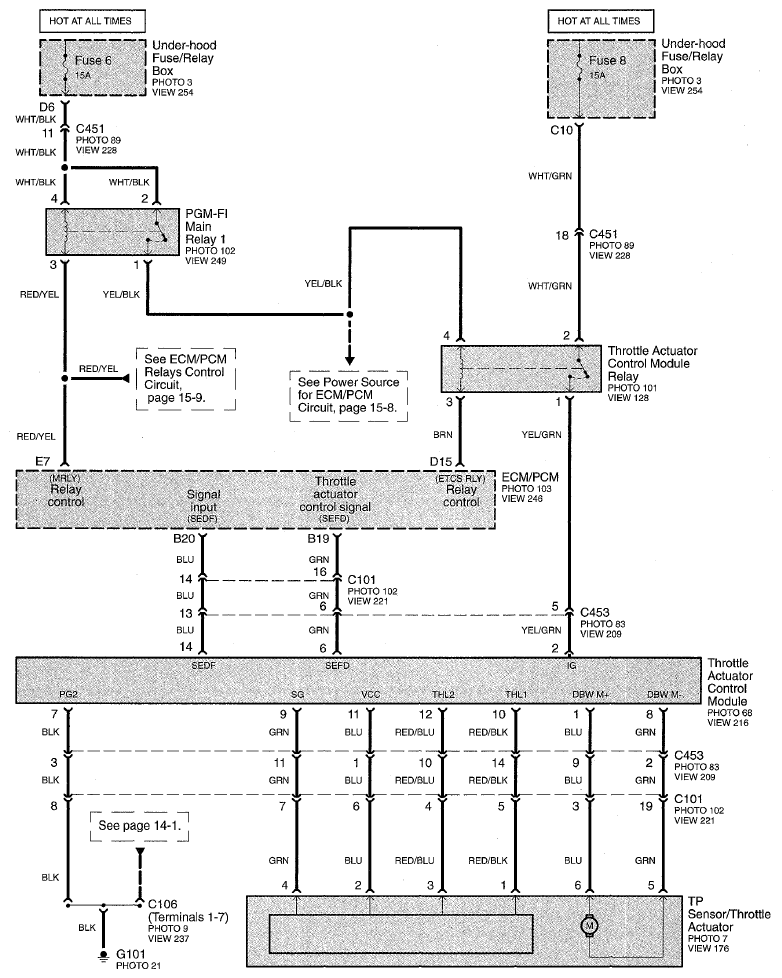

Fig 4: Cruise Control Circuit Diagram (Page 34-3)

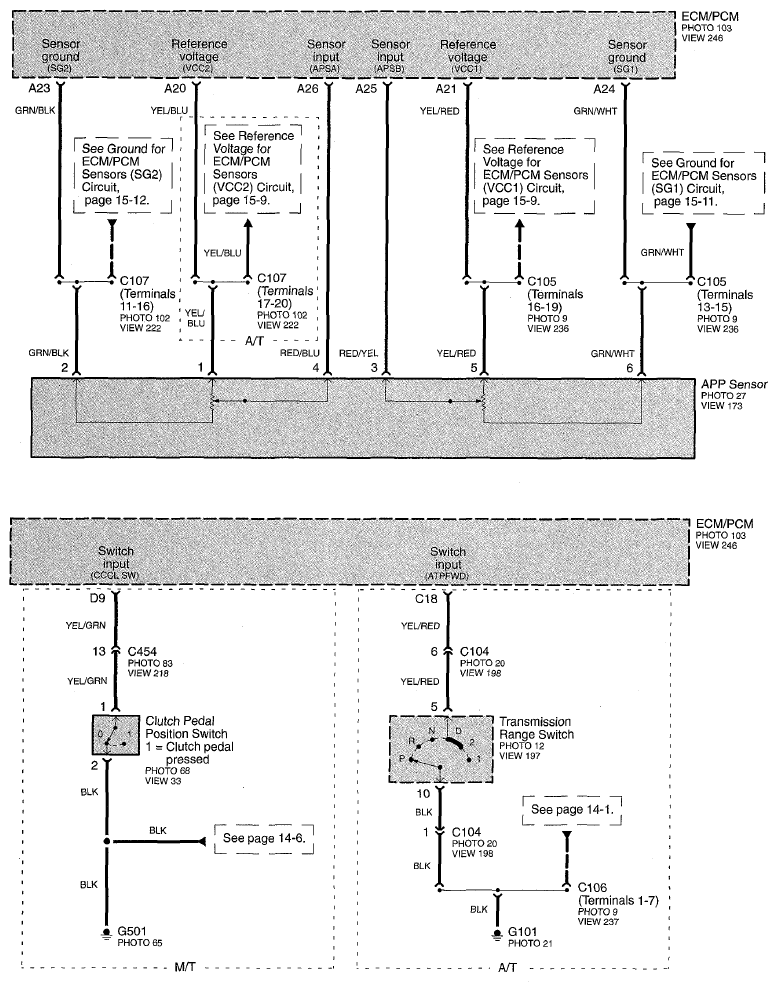

Fig 5: Cruise Control Circuit Diagram (Page 34-4)
