VTEC/VTC System

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

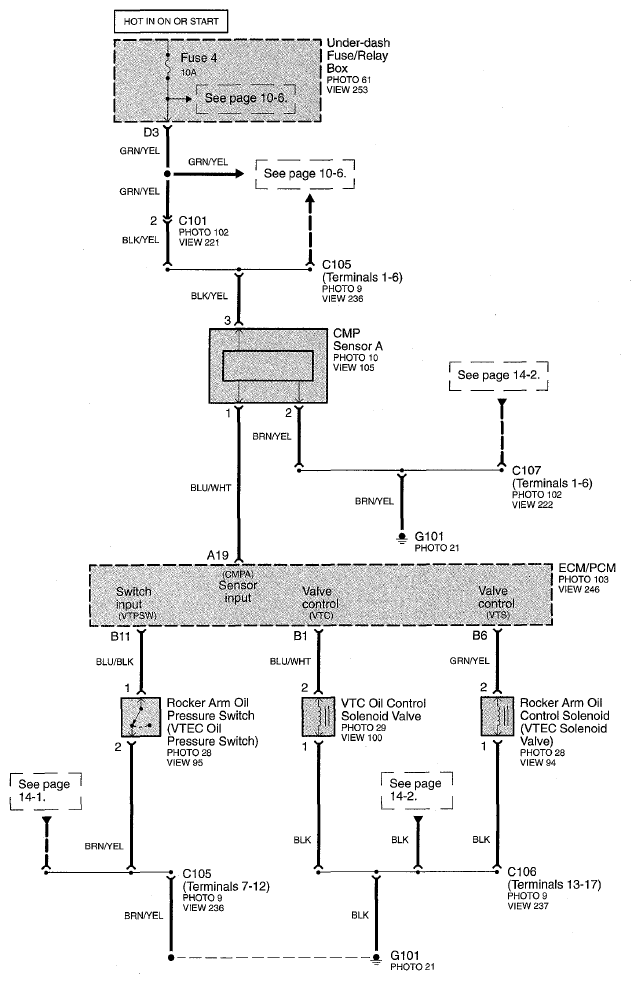

Fig 1: VTEC/VTC System Circuit Diagram (Page 31)
G07758319
