How to Identify Connector Terminals

Connector terminals are numbered according to the cavities they're in. The cavities are numbered starting from the upper left, looking at the male terminals from the terminal side or looking at the female terminals from the wire side. Both views are in the same direction so the numbers are the same. All actual cavities are numbered, even if they have no wire terminals in them.

NOTE: Data Link Connector (DLC) terminals are numbered according to SAE standard J1962, not the Honda standard. The numbers of the four end terminals are molded into the corners of the connector face.

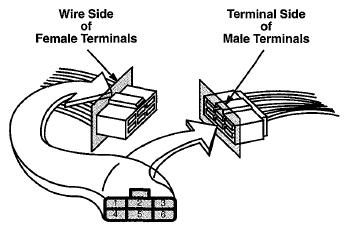

Fig 1: Identifying Wire Side Of Female Terminals And Terminal Side Of Male Terminals

The connector cavity number is listed next to each terminal on the circuit schematic. The cavity/terminal shown below is #6.

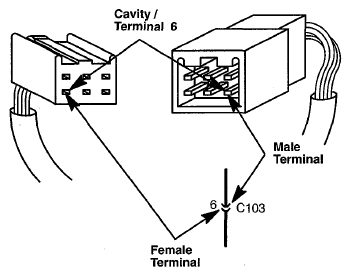

Fig 2: Identifying Cavity/Terminal

CONNECTOR TERMINALS REFERENCE CHART

Connector			Location COMPONENT LOCATION	Terminals CONNECTOR TERMINAL VIEWS	Harness OEM-CONNECTOR-TO-HARNESS LOCATIONS -- ELEMENT
Ring Terminals
(-)					BATTERY GROUND CABLE
(+)					STARTER SUB-HARNESS
G1			6		BATTERY GROUND CABLE
G2			30		ENGINE GROUND CABLE
G101			21		ENGINE WIRE HARNESS
G102			10		ENGINE WIRE HARNESS
G201			41		ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
G202			41		ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
G301			35		ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
G401			79		DASHBOARD WIRE HARNESS B
G402			88		ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
G451			89		ECM/PCM WIRE HARNESS
G501			65		DASHBOARD WIRE HARNESS A (LEFT BRANCH)
G502			108
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
G503			85
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
G551			151		FLOOR WIRE HARNESS (RIGHT BRANCH)
G552			133		FLOOR WIRE HARNESS (RIGHT BRANCH)
G553			146		FLOOR WIRE HARNESS (LEFT BRANCH)
G711			153
G751			123		RIGHT REAR DOOR WIRE HARNESS
G771			121		LEFT REAR DOOR WIRE HARNESS
T3					BATTERY GROUND CABLE
	A/T
	MAT		13
T4			30		ENGINE GROUND CABLE
T101			4		STARTER SUB-HARNESS
T102			4		STARTER SUB-HARNESS
T103			31		STARTER SUB-HARNESS
T104			25		STARTER SUB-HARNESS
T151			55		CABLE REEL SUB-HARNESS
In-line Connectors
C101			102	221	ENGINE WIRE HARNESS and ECM/PCM WIRE HARNESS
C102			39	178	STARTER SUB-HARNESS and ENGINE WIRE HARNESS
C103			39	17	STARTER SUB-HARNESS and ENGINE WIRE HARNESS
C104(A/T)			20	198	ENGINE WIRE HARNESS and TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
C105 (Junction Connector)			9	236	ENGINE WIRE HARNESS
C106 (Junction Connector)			9	237	ENGINE WIRE HARNESS
C107 (Junction Connector)			102	222	ENGINE WIRE HARNESS
C108 (A/T)			19	193	ENGINE WIRE HARNESS and TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
C319			37	18	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
C320 (Fog Light Connector)			35	19	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
C401			89	223	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and DASHBOARD WIRE HARNESS B
C402			89	217	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and DASHBOARD WIRE HARNESS B
C403			83	224	DASHBOARD WIRE HARNESS B and DASHBOARD WIRE HARNESS A (LEFT BRANCH)
C404			90	179	DASHBOARD WIRE HARNESS B and FLOOR WIRE HARNESS (RIGHT BRANCH)
C405 (Junction Connector)			88	225	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
C406 (Junction Connector)			53	226	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
C407 (Junction Connector) (Navigation)			54	227	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
C408 (Junction Connector) (Navigation)			54	202	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
C451			89	228	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and ECM/PCM WIRE HARNESS
C452			89	125	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and ECM/PCM WIRE HARNESS
C453			83	209	DASHBOARD WIRE HARNESS A (LEFT BRANCH) and ECM/PCM WIRE HARNESS
C454			83	218	DASHBOARD WIRE HARNESS A (LEFT BRANCH) and ECM/PCM WIRE HARNESS
C455			91	234	ECM/PCM WIRE HARNESS and FLOOR WIRE HARNESS (RIGHT BRANCH)
C457 (Junction Connector)			84	229	ECM/PCM WIRE HARNESS
C458 (Navigation)			99	172	ECM/PCM WIRE HARNESS
C501			89	210	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and DASHBOARD WIRE HARNESS A (LEFT BRANCH)
C502			89	205	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and DASHBOARD WIRE HARNESS A (LEFT BRANCH)
C504 (EX, SC)			64	126	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
C551			91	148
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and FLOOR WIRE HARNESS (RIGHT BRANCH)
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and FLOOR WIRE HARNESS (RIGHT BRANCH)
C552			90	149
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and FLOOR WIRE HARNESS (RIGHT BRANCH)
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and FLOOR WIRE HARNESS (RIGHT BRANCH)
C553			87	211	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and FLOOR WIRE HARNESS (RIGHT BRANCH)
C554			144	180	FLOOR WIRE HARNESS (LEFT BRANCH) and LEFT REAR DOOR WIRE HARNESS
C556			144	181	FLOOR WIRE HARNESS (RIGHT BRANCH) and RIGHT REAR DOOR WIRE HARNESS
C558			95	212	FLOOR WIRE HARNESS (RIGHT BRANCH) and VSA/FUEL PUMP WIRE HARNESS
C559 (Junction Connector)			86	230	FLOOR WIRE HARNESS (RIGHT BRANCH)
C560			129	150	FLOOR WIRE HARNESS (RIGHT BRANCH) and ODS UNIT HARNESS
C561			91	235	FLOOR WIRE HARNESS (RIGHT BRANCH)
C562			92	203
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and FLOOR WIRE HARNESS (RIGHT BRANCH)
	SC				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and FLOOR WIRE HARNESS (RIGHT BRANCH)
C570 (SC)			94	194	FLOOR WIRE HARNESS (LEFT BRANCH)
C571			126	103	FLOOR WIRE HARNESS (LEFT BRANCH)
C601			146	199	FLOOR WIRE HARNESS (LEFT BRANCH) and HATCH WIRE HARNESS
C602			146	151	FLOOR WIRE HARNESS (LEFT BRANCH) and HATCH WIRE HARNESS
C603			140	152	HATCH WIRE HARNESS and ROOF WIRE HARNESS
C604			150	153	FLOOR WIRE HARNESS (RIGHT BRANCH) and ROOF WIRE HARNESS
C605 (EX, SC)			136	257	ROOF WIRE HARNESS
C651			105	258
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and ROOF WIRE HARNESS
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and ROOF WIRE HARNESS
C652			105	154
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and ROOF WIRE HARNESS
	navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and ROOF WIRE HARNESS
C653			105	155
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and ROOF WIRE HARNESS
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and ROOF WIRE HARNESS
C681			147	219	FLOOR WIRE HARNESS (LEFT BRANCH) and HATCH WIRE HARNESS
C751			64	231	DASHBOARD WIRE HARNESS A (LEFT BRANCH) and DRIVER'S DOOR WIRE HARNESS
C752			64	182	DASHBOARD WIRE HARNESS A (LEFT BRANCH) and DRIVER'S DOOR WIRE HARNESS
C761			117	183	RIGHT REAR DOOR WIRE HARNESS
C771			117	184	LEFT REAR DOOR WIRE HARNESS
C781			105	213
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and FRONT PASSENGER'S DOOR WIRE HARNESS
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and FRONT PASSENGER'S DOOR WIRE HARNESS
C851			100	232
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and A/C WIRE HARNESS
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and A/C WIRE HARNESS
C852			100	20
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION) and A/C WIRE HARNESS
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION) and A/C WIRE HARNESS
C853			87	21	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD) and A/C WIRE HARNESS
Component Connectors
2nd Clutch Transmission Fluid Pressure Switch (A/T)			17	1	ENGINE WIRE HARNESS
3rd Clutch Transmission Fluid Pressure Switch (A/T)			19	2	ENGINE WIRE HARNESS
A/C Compressor Case Ground			38		ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
A/C Compressor Clutch			38	22	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
A/C Condenser Fan Motor			23	23	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
A/C Pressure Switch			33	24	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
A/F Sensor			40	127	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
A/F Sensor Relay			101	141	ECM/PCM WIRE HARNESS
A/T Clutch Pressure Control Solenoid Valve A (A/T)			15	25	ENGINE WIRE HARNESS
A/T Clutch Pressure Control Solenoid Valve B (A/T)			18	26	ENGINE WIRE HARNESS
A/T Clutch Pressure Control Solenoid Valve C (A/T)			18	27	ENGINE WIRE HARNESS
A/T Reverse Relay (A/T)			101	128	ECM/PCM WIRE HARNESS
A/T Shift Lever Illumination/Park Pin Switch (A/T)			81	129	ECM/PCM WIRE HARNESS
Air Mix Control Motor			70	185	A/C WIRE HARNESS
Alternator			31	130	STARTER SUB-HARNESS
AM/FM Antenna (LX)			143	3	ROOF WIRE HARNESS
AM/FM Sublead Jack			75
AM/FM/XM Antenna (EX, SC)			142	241
	Connector A
	Connector B
Antenna Lead Connector			105	242
APP Sensor			27	173	ENGINE WIRE HARNESS
ATF Temperature Sensor (A/T)				28	TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
Audio Remote Switch (EX, SC: except Navigation)			56	156	CABLE REEL SUB-HARNESS
Audio Remote-Navigation Voice Control Switch (Navigation)			56	156	CABLE REEL SUB-HARNESS
Audio Unit (except Navigation)				243
	Connector A				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
		LX	75
		EX, SC	76
	Connector B
		LX	75
		EX, SC	76		DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Connector C (EX, SC)		76		DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Connector D (EX, SC)		76		DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Connector E (EX, SC)		76
Auxiliary Jack Assembly (EX, SC)				157
	EX		97
		except Navigation			DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
		Navigation			DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
	SC		93		FLOOR WIRE HARNESS (LEFT BRANCH)
Back-up Light Switch (M/T)			16	29	ENGINE WIRE HARNESS
Blower Motor			107	30	A/C WIRE HARNESS
Blower Power Transistor			106	131	A/C WIRE HARNESS
Brake Fluid Level Switch			2	31	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Brake Pedal Position Switch			62	132	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Cable Reel				245
	Connector A		60		DASHBOARD WIRE HARNESS B
	Connector B		57		DASHBOARD WIRE HARNESS B
	Connector C		55		CABLE REEL SUB-HARNESS
Cassette Player				259
CKP Sensor			44	104	ENGINE WIRE HARNESS
Clutch Interlock Switch (M/T)			68	32	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Clutch Pedal Position Switch (M/T)			68	33	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
CMP Sensor A			10	105	ENGINE WIRE HARNESS
CMP Sensor B			10	106	ENGINE WIRE HARNESS
Combination Light Switch			57	214	DASHBOARD WIRE HARNESS B
Console Accessory Power Socket (SC)			93	34	FLOOR WIRE HARNESS (LEFT BRANCH)
Cruise Control Combination Switch			56	158	CABLE REEL SUB-HARNESS
DLC			69	215	ECM/PCM WIRE HARNESS
Driver's Airbag First and Second Inflators			55	133
Driver's Door Lock Actuator			114	35	DRIVER'S DOOR WIRE HARNESS
Driver's Door Lock Knob Switch			114	107	DRIVER'S DOOR WIRE HARNESS
Driver's Door Lock Switch			110	159	DRIVER'S DOOR WIRE HARNESS
Driver's Door Speaker			113	36	DRIVER'S DOOR WIRE HARNESS
Driver's Door Switch			119	4	LEFT REAR DOOR WIRE HARNESS
Driver's Power Window Motor			112	174	DRIVER'S DOOR WIRE HARNESS
Driver's Seat Belt Buckle Switch			125	108	FLOOR WIRE HARNESS (LEFT BRANCH)
Driver's Seat Belt Buckle Tensioner			125	134
Driver's Seat Belt Tensioner			125	135	FLOOR WIRE HARNESS (LEFT BRANCH)
Driver's Seat Position Sensor			126	37	FLOOR WIRE HARNESS (LEFT BRANCH)
Driver's Side Airbag Inflator			125	38	FLOOR WIRE HARNESS (LEFT BRANCH)
DRL Control Unit			66	206	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
ECM/PCM			103	246
	Connector A				ENGINE WIRE HARNESS
	Connector B				ENGINE WIRE HARNESS
	Connector C				ENGINE WIRE HARNESS
	Connector D				ECM/PCM WIRE HARNESS
	Connector E				ECM/PCM WIRE HARNESS
ECT Sensor 1			11	39	ENGINE WIRE HARNESS
ECT Sensor 2			37	40	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
ELD Unit				109	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
EVAP Canister Purge Valve			11	41	ENGINE WIRE HARNESS
EVAP Canister Vent Shut Valve			46	42	VSA/FUEL PUMP WIRE HARNESS
Evaporator Temperature Sensor			69	43	A/C WIRE HARNESS
Fog Light Connector (Option)			86	110	ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)
Fog Light In-line Fuse (Honda Accessory)				44
Fog Light Relay (Honda Accessory)				160
Front Accessory Power Socket				45
	EX		97		DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	LX, SC		98		DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
Front Ceiling Light				111
	LX		137		ROOF WIRE HARNESS
	EX, SC		138		ROOF WIRE HARNESS
Front Individual Map Lights (EX, SC)			135	112	ROOF WIRE HARNESS
Front Passenger's Airbag Cut-off Indicator			71	136
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
Front Passenger's Airbag First and Second Inflators			100	137	DASHBOARD WIRE HARNESS B
Front Passenger's Door Lock Actuator			116	46	FRONT PASSENGER'S DOOR WIRE HARNESS
Front Passenger's Door Speaker			113	47	FRONT PASSENGER'S DOOR WIRE HARNESS
Front Passenger's Door Switch			119	5	RIGHT REAR DOOR WIRE HARNESS
Front Passenger's Power Window Motor			118	48	FRONT PASSENGER'S DOOR WIRE HARNESS
Front Passenger's Power Window Switch			115	161	FRONT PASSENGER'S DOOR WIRE HARNESS
Front Passenger's Seat Belt Buckle Switch			129	113	FLOOR WIRE HARNESS (RIGHT BRANCH)
Front Passenger's Seat Belt Buckle Tensioner			131	138
Front Passenger's Seat Belt Tensioner			129	139	FLOOR WIRE HARNESS (RIGHT BRANCH)
Front Passenger's Side Airbag Inflator			129	49	FLOOR WIRE HARNESS (RIGHT BRANCH)
FTP Sensor			47	114	VSA/FUEL PUMP WIRE HARNESS
Fuel Tank Unit			134	162	VSA/FUEL PUMP WIRE HARNESS
Gauge Control Module			52	239	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
GPS Antenna			74
Hatch Latch Switch			154	50	HATCH WIRE HARNESS
Hatch Lock Actuator			153	51	HATCH WIRE HARNESS
Hazard Warning Switch			80	195	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Heater Control Panel			78	238	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
High Mount Brake Light			155	52	HATCH WIRE HARNESS
Horn			35	6	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Horn Switch			55	7	CABLE REEL SUB-HARNESS
Ignition Coils			22	115
		No. 1			ENGINE WIRE HARNESS
		No. 2			ENGINE WIRE HARNESS
		No. 3			ENGINE WIRE HARNESS
		No. 4			ENGINE WIRE HARNESS
Ignition Coil Relay			101	140	ECM/PCM WIRE HARNESS
Ignition Key Switch/Key Light			58	175	DASHBOARD WIRE HARNESS B
Ignition Switch			60	186	DASHBOARD WIRE HARNESS B
Immobilizer Control Unit-Receiver			58	187	DASHBOARD WIRE HARNESS B
Imoes Unit			72	163
	except Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Navigation				DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
In-dash CD Changer				259
Injectors			21	53
		No. 1			ENGINE WIRE HARNESS
		No. 2			ENGINE WIRE HARNESS
		No. 3			ENGINE WIRE HARNESS
		No. 4			ENGINE WIRE HARNESS
Inner Side Front Passenger's Weight Sensor			130	54	ODS UNIT HARNESS
Input Shaft (Mainshaft) Speed Sensor (A/T)			20	116	ENGINE WIRE HARNESS
Interior Light Switch (EX, SC)			135	247	ROOF WIRE HARNESS
Keyless Receiver Unit			67	164	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Knock Sensor			25	8	STARTER SUB-HARNESS
Left DRL			34	55	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Left Fog Light (Honda Accessory)				56
Left Front Impact Sensor			35	57	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Left Front Side Marker Light			34	58	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Left Front Turn Signal/Parking Lights			34	117	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Left Front Wheel Speed Sensor			12	59	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Left Headlight			34	118	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Left Power Mirror			111	190	DRIVER'S DOOR WIRE HARNESS
Left Rear Door Lower Switch			121	60	LEFT REAR DOOR WIRE HARNESS
Left Rear Door Speaker			120	61	LEFT REAR DOOR WIRE HARNESS
Left Rear Door Upper Switch			122	62	LEFT REAR DOOR WIRE HARNESS
Left Rear Wheel Speed Sensor			48	63	VSA/FUEL PUMP WIRE HARNESS
Left Side Curtain Airbag Inflator			139	64	ROOF WIRE HARNESS
Left Side impact Sensor (1st)			127	65	FLOOR WIRE HARNESS (LEFT BRANCH)
Left Side Impact Sensor (2nd)			145	66	FLOOR WIRE HARNESS (LEFT BRANCH)
Left Side Turn Signal Light			162	67	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Left Tailgate Latch Switch			158	68	HATCH WIRE HARNESS
Left Taillight Assembly			147	165	FLOOR WIRE HARNESS (LEFT BRANCH)
Left Tweeter (EX, SC)			50	69	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
License Plate Light			161	70	HATCH WIRE HARNESS
MAF/IAT Sensor			5	166	ENGINE WIRE HARNESS
MAP Sensor			8	119	ENGINE WIRE HARNESS
MES Connector			61	71	ECM/PCM WIRE HARNESS
Mode Control Motor			104	188	A/C WIRE HARNESS
ODS Unit			132	248
	Connector A
	Connector B
	Connector C
	Connector D				ODS UNIT HARNESS
Oil Pressure Switch			45	9	ENGINE WIRE HARNESS
Outer Side Front Passenger's Weight Sensor			130	120	ODS UNIT HARNESS
Output Shaft (Countershaft) Speed Sensor				121
	A/T		20		ENGINE WIRE HARNESS
	M/T		14		ENGINE WIRE HARNESS
Outside Air Temperature Sensor (EX, SC)			36	72	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Parking Brake Switch				10	FLOOR WIRE HARNESS (LEFT BRANCH)
	LX, EX		95
	SC		94
PGM-FI Main Relay 1			102	249	ECM/PCM WIRE HARNESS
PGM-FI Main Relay 2			102	249	ECM/PCM WIRE HARNESS
Power Mirror Switch			110	204	DRIVER'S DOOR WIRE HARNESS
Power Window Master Switch			110	207	DRIVER'S DOOR WIRE HARNESS
PSP Switch			26	73	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Radiator Fan Motor			24	74	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Rear Accessory Power Socket			148	75	FLOOR WIRE HARNESS (RIGHT BRANCH)
Rear Accessory Power Socket Relay			101	141	ECM/PCM WIRE HARNESS
Rear Ceiling Light			141	122	ROOF WIRE HARNESS
Rear Ceiling Light Diode			63	76	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Rear Sating Sensor			96	77	FLOOR WIRE HARNESS (RIGHT BRANCH)
Rearview Camera Connector (Navigation)			159	200	HATCH WIRE HARNESS
Rear Window Defogger				250
	Connector A		156		HATCH WIRE HARNESS
	Connector B		157		HATCH WIRE HARNESS
Rear Window Washer Motor			42	78	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Rear Window Wiper Intermittent Control Unit			147	191	FLOOR WIRE HARNESS (LEFT BRANCH)
Rear Window Wiper Motor			153	142	HATCH WIRE HARNESS
Recirculation Control Motor			104	189	A/C WIRE HARNESS
Right DRL			34	79	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Right Fog Light (Honda Accessory)				80
Right Front Impact Sensor			41	81	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Right Front Side Marker Light			34	82	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Right Front Turn Signal/Parking Lights			34	123	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Right Front Wheel Speed Sensor			44	83	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Right Headlight			34	124	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Right Power Mirror			111	192	FRONT PASSENGER'S DOOR WIRE HARNESS
Right Rear Door Lower Switch			123	84	RIGHT REAR DOOR WIRE HARNESS
Right Rear Door Speaker			120	85	RIGHT REAR DOOR WIRE HARNESS
Right Rear Door Upper Switch			124	86	RIGHT REAR DOOR WIRE HARNESS
Right Rear Wheel Speed Sensor			49	87	VSA/FUEL PUMP WIRE HARNESS
Right Side Curtain Airbag Inflator			139	88	ROOF WIRE HARNESS
Right Side Impact Sensor (1st)			127	89	FLOOR WIRE HARNESS (RIGHT BRANCH)
Right Side Impact Sensor (2nd)			145	90	FLOOR WIRE HARNESS (RIGHT BRANCH)
Right Side Turn Signal Light			162	91	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Right Tailgate Latch Switch			160	92	HATCH WIRE HARNESS
Right Taillight Assembly			147	167	FLOOR WIRE HARNESS (RIGHT BRANCH)
Right Tweeter (EX, SC)			50	93	ROOF WIRE HARNESS
Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve)			28	94	ENGINE WIRE HARNESS
Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch)			28	95	ENGINE WIRE HARNESS
Roll Rate Sensor			128	96	FLOOR WIRE HARNESS (LEFT BRANCH)
Secondary HO2S			40	143	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Security Control Unit Connector (Option)			67	233	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Security LED (Honda Accessory)				97
Shift Control Solenoid Valve A (A/T)				11	TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
Shift Control Solenoid Valve B (A/T)				12	TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
Shift Control Solenoid Valve C (A/T)				13	TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
Shift Control Solenoid Valve D (A/T)				14	TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
Shift Control Solenoid Valve E (A/T)				15	TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
Shift Lock Solenoid/D3 Switch (A/T)			84	144	ECM/PCM WIRE HARNESS
SRS Unit			86	251
	Connector A				DASHBOARD WIRE HARNESS B
	Connector B				FLOOR WIRE HARNESS (RIGHT BRANCH)
	Connector C				FLOOR WIRE HARNESS (RIGHT BRANCH)
Starter Solenoid			25	16	STARTER SUB-HARNESS
Steering Angle Sensor			59	168	DASHBOARD WIRE HARNESS B
Stereo Amplifier (EX, SC)			109	252
	except Navigation
		Connector A			DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
		Connector B			DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (EXCEPT NAVIGATION)
	Navigation
		Connector A			DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
		Connector B			DASHBOARD WIRE HARNESS A (RIGHT BRANCH) (NAVIGATION)
Subwoofer (EX, SC)			89	145	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Throttle Actuator Control Module			68	216	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Throttle Actuator Control Module Relay			101	128	ECM/PCM WIRE HARNESS
TP Sensor/Throttle Actuator			7	176	ENGINE WIRE HARNESS
TPMS Control Unit			73	220	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Trailer Connector (Honda Accessory)				146
Trailer Lighting Connector (Option)			152	147	HATCH WIRE HARNESS
Trailer Lighting Control Unit Connector (Option)			65	196	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Trailer Lighting Control Unit (Honda Accessory)				201
Trailer Lighting In-line Fuse 1 (Honda Accessory)				98
Trailer Lighting In-line Fuse 2 (Honda Accessory)				99
Transmission Range Switch (A/T)			12	197	TRANSMISSION RANGE SWITCH SUB-HARNESS (A/T)
Under-dash Fuse/Relay Box			61	253
	Connector A				DASHBOARD WIRE HARNESS B
	Connector B				DASHBOARD WIRE HARNESS B
	Connector C				DASHBOARD WIRE HARNESS B
	Connector D				ECM/PCM WIRE HARNESS
	Connector E				ECM/PCM WIRE HARNESS
	Connector F				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
	Connector G				ECM/PCM WIRE HARNESS
	Connector H				ECM/PCM WIRE HARNESS
	Connector J				DASHBOARD WIRE HARNESS B
	Connector K				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
	Connector L				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
	Connector M				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
	Connector N				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
	Connector O				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
	Connector P				ECM/PCM WIRE HARNESS
	Connector Q				ECM/PCM WIRE HARNESS
	Connector R (A/T)				ECM/PCM WIRE HARNESS
	Connector S				DASHBOARD WIRE HARNESS B
	Connector U (Honda Accessory) Connector W (MES connector)				ECM/PCM WIRE HARNESS
	Connector X				DASHBOARD WIRE HARNESS B
	Connector Y				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
Under-hood Fuse/Relay Box			3	254
	Connector A				ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
	Connector B				ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
	Connector C				ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
	Connector D				ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
	Connector E				ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
USB Adapter Unit (Navigation)			82	255
	Connector A				DASHBOARD WIRE HARNESS A (LEFT BRANCH)
	Connector B				ECM/PCM WIRE HARNESS
USB Jack (Navigation)			99	169	ECM/PCM WIRE HARNESS
VSA Modulator-Control Unit			32	240	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
VSA OFF Switch (VSA)			51	170	DASHBOARD WIRE HARNESS A (LEFT BRANCH)
VSA Sensor Cluster			95	177	FLOOR WIRE HARNESS (RIGHT BRANCH)
VTC Oil Control Solenoid Valve			29	100	ENGINE WIRE HARNESS
Washer Fluid Level Switch (Canada)				101	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Windshield Washer Motor			43	102	ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH)
Windshield Wiper Motor			1	171	ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
Wiper/Washer Switch			58	208	DASHBOARD WIRE HARNESS B
XM Receiver (EX, SC)			149	256
	Connector A				FLOOR WIRE HARNESS (RIGHT BRANCH)
	Connector B
