Windshield Wiper Motor (View 171)
GRY
Under left side of cowl cover
On engine compartment wire harness (left branch)

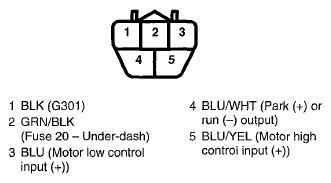

Fig 1: Windshield Wiper Motor Connector Terminal (View 171)
