Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunction criteria to the line(s) that should be checked in the figure below:

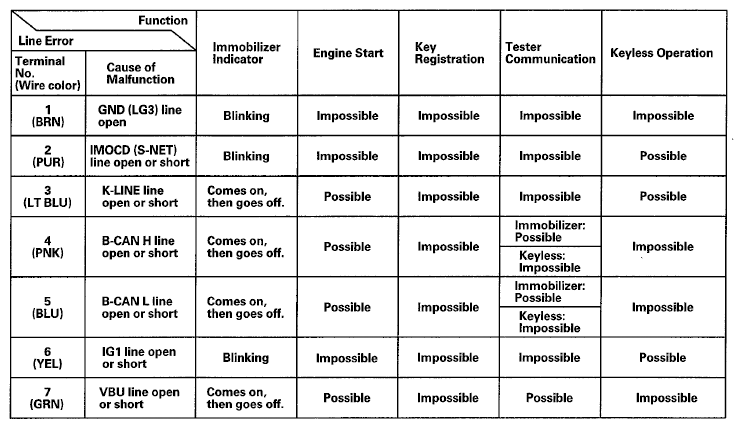

Fig 1: Identifying Symptom Troubleshooting Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
