Gauge Control Module Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before replacing the gauge control module, retrieve the ODO data from the gauge control module with the HDS (see REWRITING THE ODO DATA ON A NEW GAUGE CONTROL MODULE ).

Turn the ignition switch to LOCK (0).
Remove the instrument visor (see INSTRUMENT VISOR REMOVAL/INSTALLATION ).
Remove the three screws from the gauge control module (A).

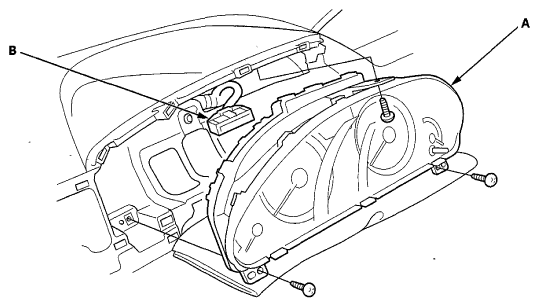

Fig 1: Identifying Gauge Control Module With Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 32P connector (B) from the gauge control module.
Install the gauge control module in the reverse order of removal.
Rewriting the ODO data on a new gauge control module (see REWRITING THE ODO DATA ON A NEW GAUGE CONTROL MODULE ).
NOTE: Check the official Honda website for more information on how to write odometer information to a gauge control module that will not communicate with the HDS.
