With HandsFreeLink

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).

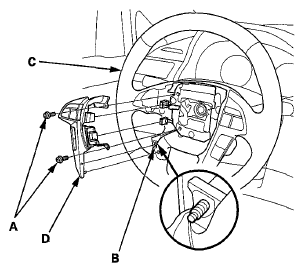

Remove the screws (A), and loosen the screw (B) from the steering wheel (C).

Fig 1: Locating Screws, Steering Wheel Trim And Steering Wheel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors, and remove the steering wheel trim (D).

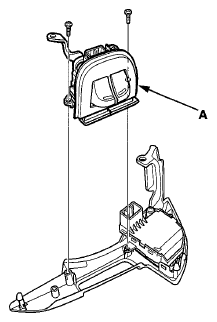

Remove the screws and the HFL switch (A).
NOTE: The HFL-navigation voice control switch and the HFL switch are the same parts.

Fig 2: Locating Screws And HFL Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw and the audio remote switch (A).

Fig 3: Locating Screw And Audio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio remote switch in the reverse order of removal.
