Without HandsFreeLink

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the screw (A), and loosen the screw (B) from the steering wheel (C).

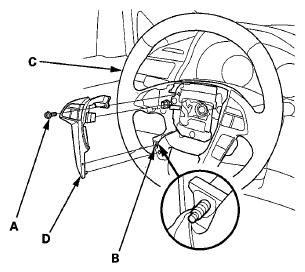

Fig 1: Locating Screw, Steering Wheel And Steering Wheel Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector, and remove the steering wheel trim (D).
Remove the screws and the audio remote switch (A).

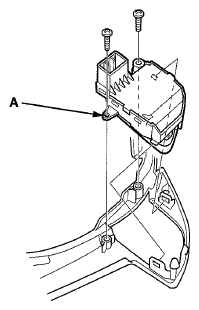

Fig 2: Locating Screws And Audio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio remote switch in the reverse order of removal.
