Audio Switch Panel Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
Eject all the discs before removing the audio unit to prevent damaging the CD/DVD player's load mechanism.

Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
Do not touch the terminal connector (A) of the audio switch panel (B) with your bare hands (if you have touched it, wipe it off thoroughly).

Fig 1: Locating Terminal Connector And Audio Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

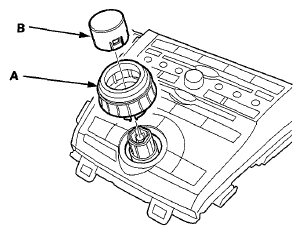

Remove the dial (A) and button (B).

Fig 2: Locating Dial And Button
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio switch panel in the reverse order of removal.
