Front Center Speaker

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

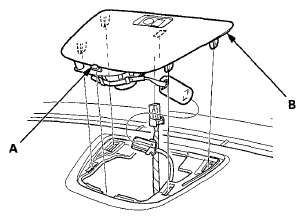

  1. From the notch (A), carefully pry the speaker grille (B) out with a small screwdriver, then disconnect the connectors. Be careful not to damage the speaker grille and the dashboard.
    Fig 1: Locating Notch And Speaker Grille
    G06970927Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws and the front center speaker (A).
    Fig 2: Measuring Resistance Between Terminals No. 1 And No. 2
    G06970928Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ω.
  4. If the resistance is not as specified, replace the front center speaker.
