Speaker Test/Replacement: Subwoofer

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Remove the bolts (A) and nuts (B) from the subwoofer (C).

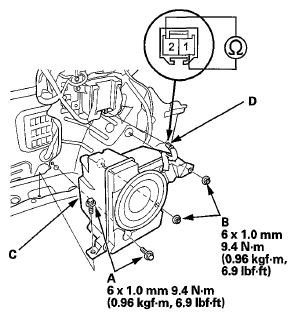

    Fig 1: Measuring Resistance Between Terminals No. 1 And No. 2 With Torque Specifications
    G06970932Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (D), then remove the subwoofer.
  4. Measure the resistance between the terminals No. 1 and No. 2. There should be about 2 Ω.
  5. If the resistance is not as specified, replace the subwoofer.
