USB Adapter Holder Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the glove box, and disconnect the glove box damper from the pivot of the glove box (see step 1 on GLOVE BOX REMOVAL/INSTALLATION ).
  2. Disconnect the USB adapter 5P connector (A) and remove the USB adapter holder (B).

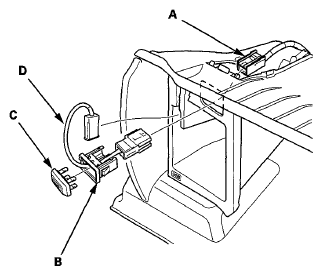

    Fig 1: Locating USB Adapter 5P Connector, USB Adapter Holder, Cap And USB Adapter
    G06970941Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the cap (C) and the USB adapter (D) from the USB adapter holder.
  4. Install the USB adapter holder in the reverse order of removal.
