Front Console Damper Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the passenger's heater panel.
Remove the front console damper (A) from the center lower console (B).
1. Remove the screw.
2. Open the cool box (C), and disconnect the damper from the pivot (D).

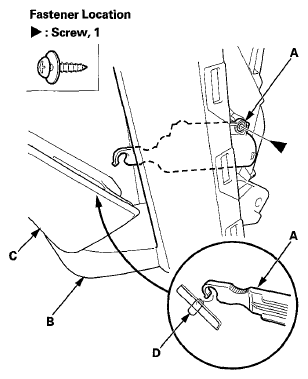

  Fig 1: Identifying Front Console Damper, Center Lower Console And Cool Box
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the damper in the reverse order of removal.
