CKP Pulse Plate Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL  ).
  2. Remove the CKP pulse plate (A).
    NOTE: Be careful not to damage the journals and the CKP pulse plate.

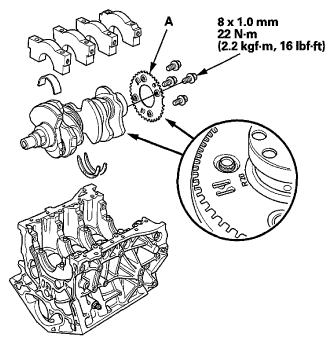

    Fig 1: CKP Pulse Plate With Mounting Bolts Torque Specifications
    G06966492Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the CKP pulse plate in the reverse order of removal.
    NOTE: When installing the crankshaft, refer to the CRANKSHAFT AND PISTON INSTALLATION PROCEDURE  .
