Big End Bore Code Locations

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Numbers or bars have been stamped on the side of each connecting rod as a code for the size of the big end. Use them, and the letters or bars stamped on the crank (codes for rod journal size), to choose the correct bearings. If the codes are indecipherable because of an accumulation of dirt and dust, do not scrub them with a wire brush or scraper. Clean them only with solvent or detergent.

Fig 1: Identifying Big End Bore Code

Courtesy of AMERICAN HONDA MOTOR CO., INC.

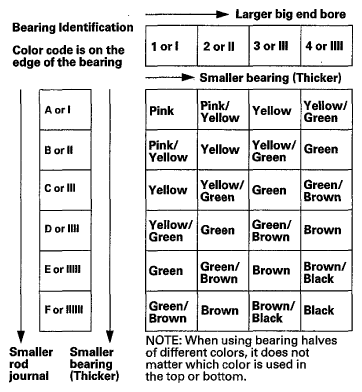

Fig 2: Bearing Identification Reference Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

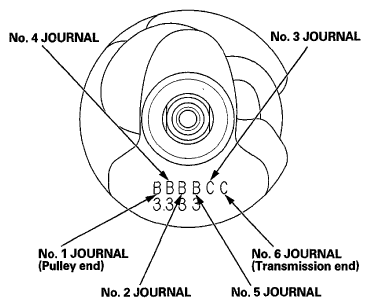

Connecting Rod Journal Code Locations (Letters or Bars)

Fig 3: Connecting Rod Journal Code

Courtesy of AMERICAN HONDA MOTOR CO., INC.
