Piston, Pin, and Connecting Rod Replacement: Inspection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect the piston, the piston pin, and the connecting rod when they are at room temperature.

Measure the diameter of the piston pin.
Piston Pin Diameter

Standard (New): 21.962-21.965 mm (0.86464-0.86476 in)

Service Limit: 21.954 mm (0.86433 in)

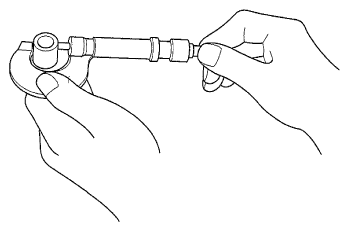

Fig 1: Measuring Diameter Of Piston Pin
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Zero the gauge (A) to the piston pin diameter.

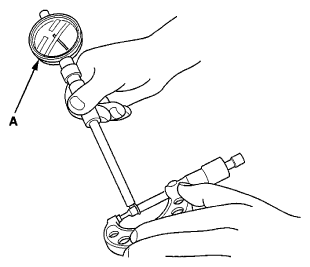

Fig 2: Making Gauge Reading To Zero On Piston Pin Diameter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the difference between the piston pin diameter and the piston pin hole diameter on the piston.
Piston Pin-to-Piston Clearance

Standard (New): -0.0050-0.0010 mm (-0.000197-0.000039 in)

Service Limit: 0.004 mm (0.00016 in)

Fig 3: Checking Difference Between Piston Pin Diameter And Piston Pin Hole Diameter On Piston
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the piston pin-to-connecting rod clearance.
Piston Pin-to-Connecting Rod Clearance

Standard (New): 0.005-0.014 mm (0.00020-0.00055 in)

Service Limit: 0.019 mm (0.00075 in)

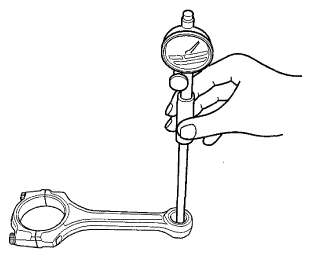

Fig 4: Measuring Piston Pin-To-Connecting Rod Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
