Canada models

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the washer fluid level switch (B).

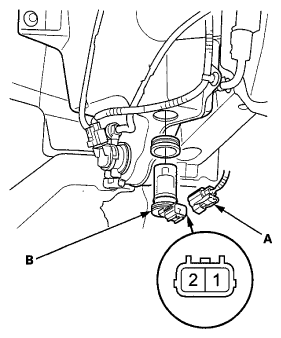

Fig 1: Identifying 2P Connector And Washer Fluid Level Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the washer fluid level switch from the washer reservoir.
NOTE: Fluid may flow out of the opening.
Check for continuity between the terminals in each switch position according to the table.

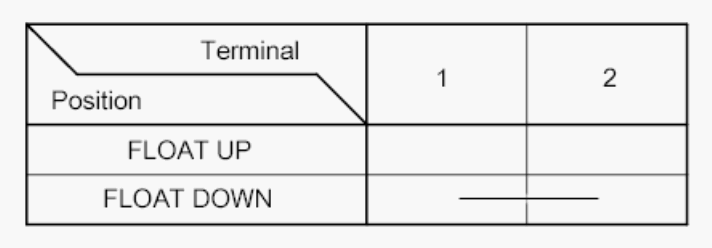

Fig 2: Checking Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch (see Washer Motor/Reservoir Replacement ).
