Wiper Arm/Nozzle Adjustment: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When you adjust the washer nozzles, carefully move the outside of the washer nozzles (A).
Do not insert tools into the nozzle hole (B) as it may cause the washer fluid to spray incorrectly.

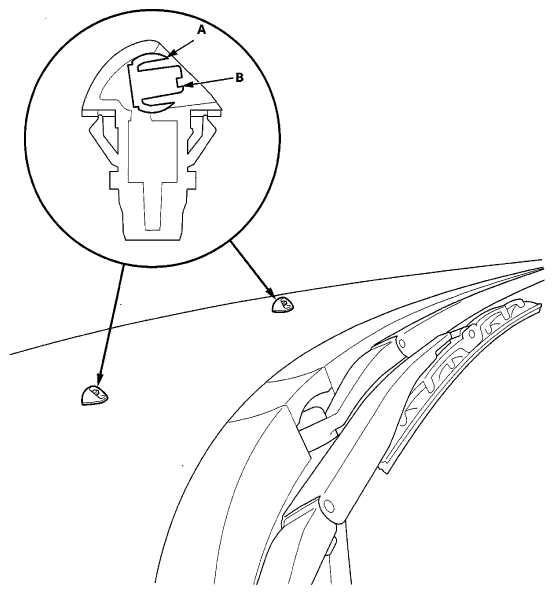

Fig 1: Identifying Washer Nozzles And Nozzle Hole
Courtesy of AMERICAN HONDA MOTOR CO., INC.
