Wiper/Washer Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).

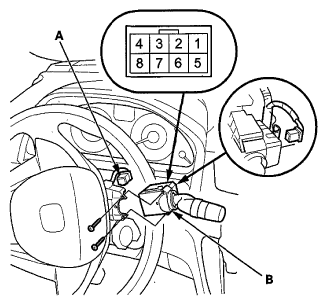

Disconnect the wiper/washer switch 8P connector (A) from the wiper/washer switch (B).

Fig 1: Identifying Wiper/Washer Switch 8P Connector And Wiper/Washer Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, then slide out the wiper/washer switch.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look is OK, go to step 5.
Check for continuity between the terminals in each switch position according to the table.

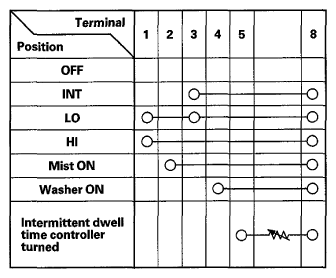

Windshield

Fig 2: Identifying Windshield Connector Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

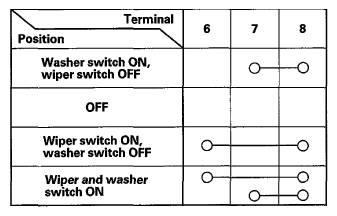

Rear window

Fig 3: Identifying Rear Window Connector Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
